Place Of Origin: China
Whether Alloy: Is Alloy
Packaging: Standard export packaging, covered with plastic film or kraft paper
Transportation: Ocean
Supply Ability: Within 30 days, depending on your order quantity
Port: guangzhounansha
Please feel free to contact us for other kinds of aluminum tubes
| OM SIZE | OUTSIDE DIA (D) | WALL THICKNESS IN MM (T) | METRIC SIZE | ||||||
| SCH 10S | SCH 10 | SCH 40 S | STD Weight | SCH 40 | SCH 80s | SCH 80 | |||
| 1/4 “ | 13.72 | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | ||
| 3/8″ | 17.15 | 1.65 | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 | ||
| 1/2″ | 21.34 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 15 | |
| 3/4″ | 26.67 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 20 | |
| 1″ | 33.4 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 25 | |
| 1 1/4″ | 42.16 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 32 | |
| 1 1/2″ | 48.26 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 40 | |
| 2″ | 60.32 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 50 | |
| 2 1/2″ | 73.02 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 65 | |
| 3″ | 88.9 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 80 | |
| 3 1/2″ | 101.6 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 90 | |
| 4″ | 114.3 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 100 | |
| 5″ | 141.3 | 3.4 | 6.55 | 6.55 | 6.55 | 9.52 | 9.52 | 125 | |
| 6″ | 168.27 | 3.4 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 150 | |
| 8″ | 219.07 | 3.76 | 8.18 | 8.18 | 8.18 | 12.7 | 12.7 | 200 | |
| 10″ | 273.05 | 4.19 | 9.27 | 9.27 | 9.27 | 12.7 | 15.08 | 250 | |
| 12″ | 323.85 | 4.57 | 9.52 | 9.52 | 10.31 | 12.7 | 17.47 | 300 | |
| 14″ | 355.6 | 4.77 | 6.35 | 9.52 | 11.12 | 19.05 | 350 | ||
| 16″ | 404.6 | 4.77 | 6.35 | 9.52 | 12.7 | 21.44 | 400 | ||
| 18″ | 457.2 | 4.77 | 6.35 | 9.52 | 14.27 | 23.82 | 450 | ||
DETAILS :
| Alloy & Temper | Size in mm | Application |
| 7075t6 | 14*0.8 / 16*0.7 / 18*0.7 | Ski pole / tracking pole |
| 7075t6 | 7*0.3 / 9*0.4 | Arrow tubes |
| 2014t6, 7075t6, 7075t76 | 22*2.5 / 30*4.8 | Handle bar |
| aa3003, 6063, 6061 | 16*1.2 / 12*1.75 / 16*1.75 / 12*2 / 7.94*1 / 9.52*1 / 12.7*1.2 / 16*2 | Automobile radiator connector |
| 5046-h111 | Condenser & heat exchanger | |
| d97, 1015 | Automobile heat sink & radiator tubes | |
| 7001t6 | 8.5*0.7 / 9.5*0.7 / 11*0.7 / 7*1.2 | Tent pole |
| aa7045, 7050, 6061 | 60.3*2.29(7046) 60.3*2.16(7050) 50.8*2.16(6061) | Bat tubes |
| aa6061, 7005 | 26*18*1.6 / 36*18*1.4 / 65*25*2 / 64*42*1.8 | Bike tubes rectangular |
| 7075t6, 7050t7351 | 30.5*24.8 / 31.7*22.2 | Bike shock absorbers |
| 3003h16 | 40*0.8/40*0.9/25*0.9/30*0.9/120*0.9 /164*10/140*160 | Copy drum |
| 7075t6 | Aircraft & rail seat components |
ASTM B241 / ASME SB241 – Standard Specification for Aluminum and Aluminum-Alloy Seamless Pipe and Seamless Extruded Pipes
ASTM B345 / ASME S345 – Standard Specification for Aluminum and Aluminum-Alloy Seamless Pipe and Seamless Extruded Pipe for Gas and Oil Transmission and Distribution Piping Systems
ASTM B429 / ASME SB429 – Standard Specification for Aluminum-Alloy Extruded Structural Pipe and Tube
EN AW-AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Round Pipe
ISO AlMg1SiCu – Standard Specification for Aluminum and Aluminum-Alloy Cold / Hot Rolled Piping
Chemical Material Composition LSAW Steel Pipe

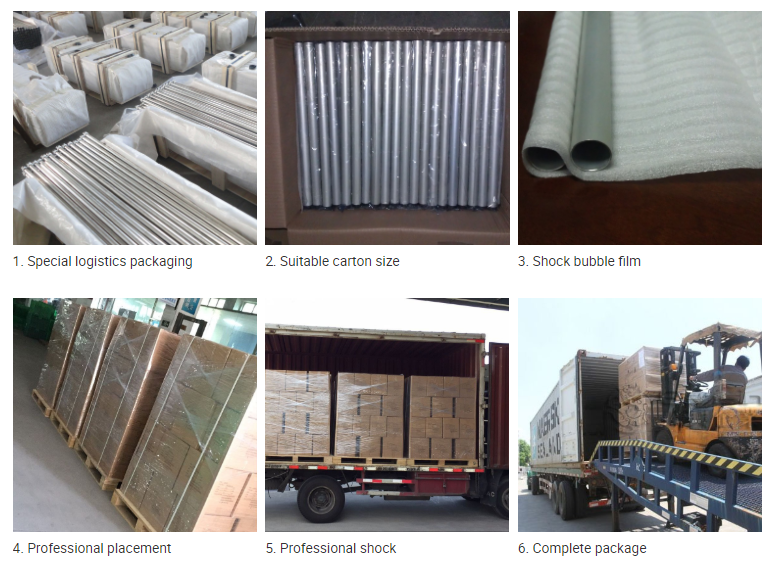

Our products are packed and labelled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might be caused during storage or transportation.
The standard export packaging, plastic film or craft paper covered.
Wooden case or wooden pallet is adopted to protect products from damage during the delivery.
In addition, clear labels are tagged on the outside of the packages for easy identification of the products and quality information.
Product Categories : Aluminum
