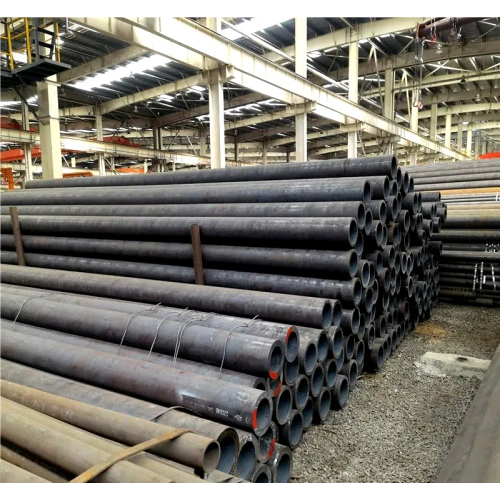

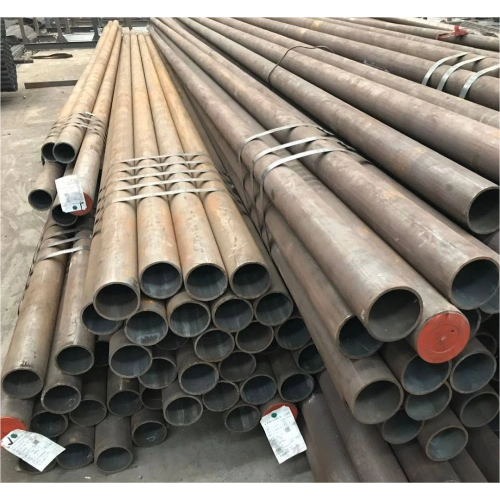

Carbon Seamless Steel Pipe ASTM1

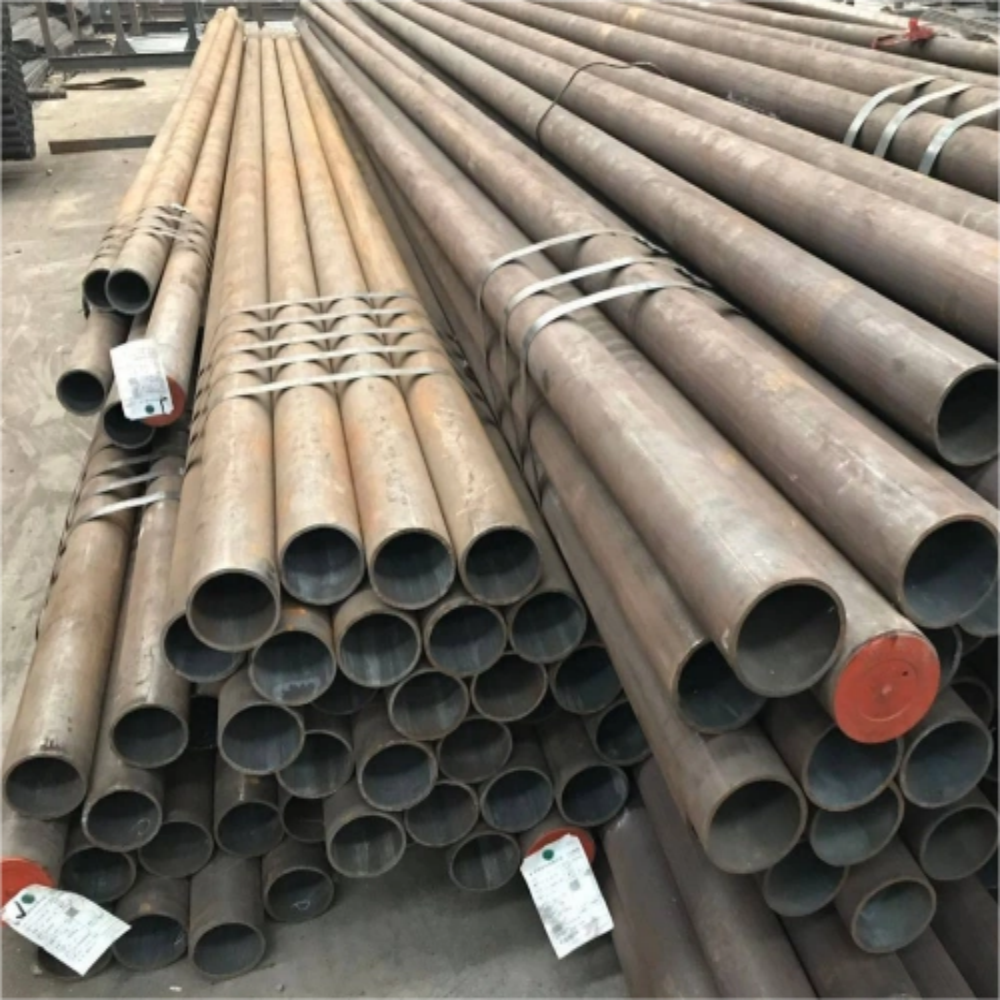

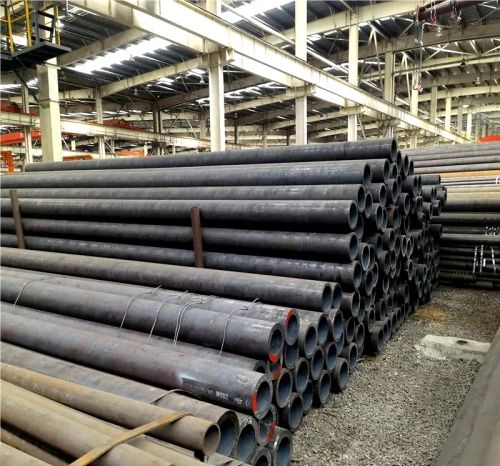

Carbon Seamless Steel Pipe / Tube

Seamless Steel Pipe is a tubular section or hollow cylinder, usually but not necessarily of circular cross-section, used mainly to convey substances which can flow - liquids and gases (fluids), slurries, powders and masses of small solids.

Hot rolled seamless Steel Pipe deformation process can be summarized as three stages: extension, perforation and finishing. Hot rolled Seamless Steel Pipes is relative to the cold-rolled, cold rolling is below the recrystallization temperature of the rolling and hot rolled is carried out at above the recrystallization temperature of the rolling. Hot rolled seamless steel pipe can damage the refinement of the crystal grains of the steel, cast microstructure of the steel ingot and eliminate the defects of the microstructure so that the the steel organization compacting, improves the mechanical properties. This improvement is reflected in the rolling direction so that the steel is no longer at a certain extent isotropic; pouring the formation of bubbles, cracks and osteoporosis, under high pressure and temperature can also be welded together.

Hot Rolled Steel Pipes (Seamless Tube) in different size, specifications, grades & thickness as per the client's requirements. The range offered by tubes is available as per the international & national standard and can be available from us at affordable prices. These pipes are used in various application industry like shipbuilding, power plants, oil and gas, automotive, sugar mills and distilleries, cement and construction industries etc

ASTM A106 Seamless Carbon Steel Tube

ASTM A106/ASME SA106 is the standard specification for seamless Carbon Steel Pipe applied for high temperature services. It includes three grades A, B and C, and common use grade is A106 Grade B. It used in different industries not only for pipeline systems like oil and gas, water, mineral slurry transmission, but also for boiler, construction, structural purposes.

ASTM A106 Grade B pipe is equivalent to ASTM A53 Grade B and API 5L B on chemical position and mechanical properties, in general use carbon steel and yiled strength minimum 240 MPa, tensile strength 415 Mpa.

Description

1. Standards: ASTM A106 (ASME SA106)

2. Products mainly used: apply to bending, curling and similar forming process.

3. The main products of steel / steel grade: Gr.A, Gr.B, Gr.C.

4. Specifications: diameter: 10.3 to 114.3 mm thickness: 0.8 to 12 mm Length: 6 m above, and, in accordance with customer demand, supply and other specifications of steel pipe.

5. Chemical composition and mechanical properties

6. JIS Number and Corrensponding Foreign Standards

Stainless Seamless Pipe

ASTM A53 Carbon Steel Pipe & Tube

ASTM A53 (ASME SA53) carbon steel pipe is a specification that covers seamless and welded black and hot-dipped Galvanized Steel Pipe in NPS 1/8″ to NPS 26.  A 53 is intended for pressure and mechanical applications and is also acceptable for ordinary uses in steam, water, gas, and air lines.

API 5L PSL 1 / PSL 2 Chemical Composition:
