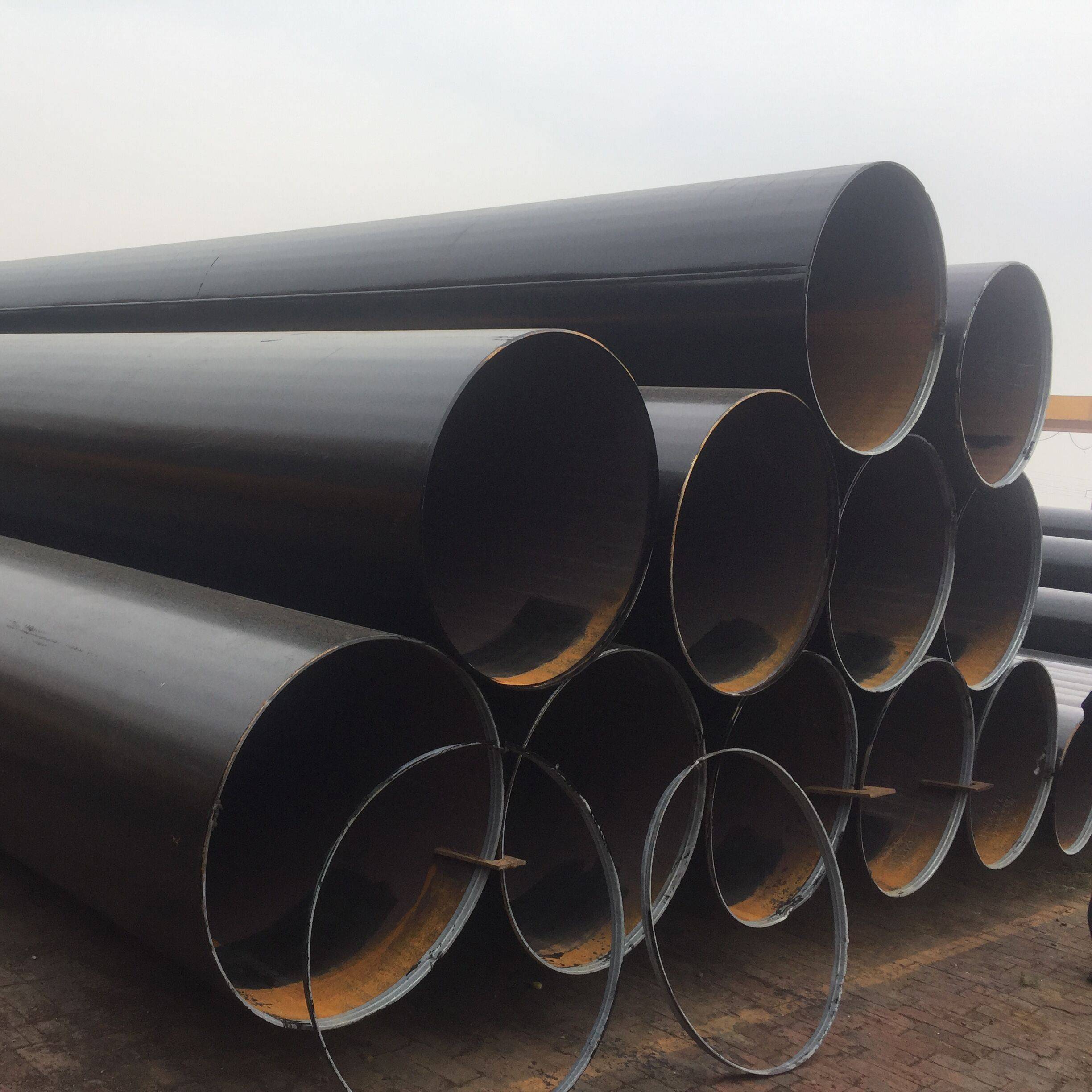

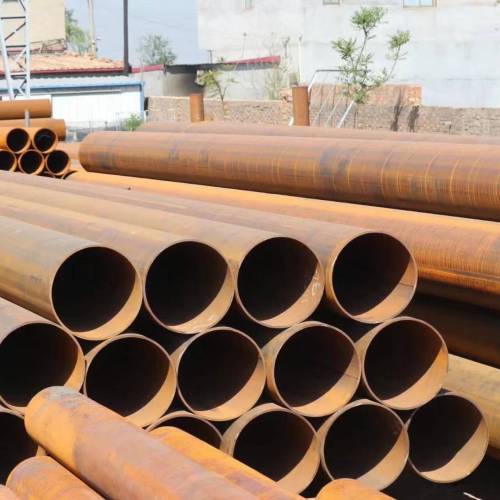

Welded straight seam submerged arc welded steel pipes

Basic Info

Section Shape: Round

Place Of Origin: China

Application: Fluid Pipe, Boiler Pipe, Drill Pipe, Hydraulic Pipe, Gas Pipe, Oil Pipe, Chemical Fertilizer Pipe, Structure Pipe

Surface Treatment: Galvanized

Special Tube: Thick Wall Pipe

Category: Welded Steel Pipe

Processing Service: Welding

Additional Info

Packaging: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped

Productivity: Ten items per day

Transportation: Ocean,Land

Place of Origin: Foshan, Guangdong

Supply Ability: Within 30 days and Depends on your order quantity

Port: guangzhounansha

Product Description

UOE LSAW Steel Pipe

UOE mill adopts the most advanced technology and process, with high production efficiency, stable product quality, and equipped with complete testing equipment. The UOE mill adopts U&O molding, and the formed pipeline is welded to the outside through five internal welding stations using three wires, and to the outside through four external welding stations using three wires. According to different customer requirements, welded pipes can be expanded through mechanical or static pressure expansion to improve dimensional accuracy and eliminate residual stress.

specifications

Outer diameter 508mm -1118mm (20 "-44")

Wall thickness: 6.0-25.4mm 1/4 "-1"

Quality standards: API, DNV, ISO, DEP, EN, ASTM, DIN, BS, JIS, GB, CSA

Length: 9-12.3m (30 '-40')

Grade: API5L A-X90, GB/T9711 L190-L625

JOCE LSAW pipes (bent)

This is the production line for large-diameter longitudinal submerged arc welding (LSAW) pipes in China. This grinder adopts a progressive bending process, which has the characteristics of uniform forming stress distribution, high dimensional uniformity, unlimited dimensional variation, wide product range, and high flexibility.

specifications

Outer diameter: Φ 406mm -1626mm (16 "-64")

Wall thickness: 6.0-75mm (1/4 "-3")

Quality standards: API, DNV, ISO, DEP, EN, ASTM, DIN, BS, JIS, GB, CSA

Length: 3-12.5m (10 '-41')

Material: API 5L A-X100, GB/T9711 L190-L690

LSAW steel pipe dimensions

Outer diameter and wall thickness tolerances

类型	标准
类型	SY/T5040-2000	SY/T5037-2000	SY/T9711.1-1977	ASTM A252标准	AWWA C200-97型	原料药 5L PSL1
管端外径偏差	±0.5%D	±0.5%D	-0.79mm~+2.38毫米	<±0.1%吨	<±0.1%吨	±1.6毫米
壁厚	±10.0%吨	D<508mm， ±12.5%T	-8%T~+19.5%T	<-12.5%吨	-8%T~+19.5%T	5.0mm<长<15.0mm，±0.11
壁厚	±10.0%吨	D>508mm， ±10.0%T	-8%T~+19.5%T	<-12.5%吨	-8%T~+19.5%T	T≥15.0毫米，±1.5毫米

化学成分和机械性能

标准	年级	化学成分（max）%					机械性能（min）
标准	年级	C	锰	四	S	P	屈服强度（Mpa）	抗拉强度（Mpa）
GB/T700-2006	一个	0.22	1.4	0.35	0.050	0.045	235	370
	B	0.2	1.4	0.35	0.045	0.045	235	370
	C	0.17	1.4	0.35	0.040	0.040	235	370
	D	0.17	1.4	0.35	0.035	0.035	235	370
GB/T1591-2009	A	0.2	1.7	0.5	0.035	0.035	345	470
	B	0.2	1.7	0.5	0.030	0.030	345	470
	C	0.2	1.7	0.5	0.030	0.030	345	470
BS En10025	S235JR	0.17	1.4	-	0.035	0.035	235	360
	S275JR	0.21	1.5	-	0.035	0.035	275	410
	S355JR	0.24	1.6	-	0.035	0.035	355	470
DIN 17100	ST37-2	0.2	-	-	0.050	0.050	225	340
	ST44-2	0.21	-	-	0.050	0.050	265	410
	ST52-3	0.2	1.6	0.55	0.040	0.040	345	490
JIS G3101	SS400	-	-	-	0.050	0.050	235	400
JIS G3101	SS490	-	-	-	0.050	0.050	275	490
API 5L PSL1	A	0.22	0.9	-	0.03	0.03	210	335
	B	0.26	1.2	-	0.03	0.03	245	415
	X42	0.26	1.3	-	0.03	0.03	290	415
	X46	0.26	1.4	-	0.03	0.03	320	435
	X52	0.26	1.4	-	0.03	0.03	360	460
	X56	0.26	1.1	-	0.03	0.03	390	490
	X60	0.26	1.4	-	0.03	0.03	415	520
	X65	0.26	1.45	-	0.03	0.03	450	535
	X70	0.26	1.65	-	0.03	0.03	585	570
