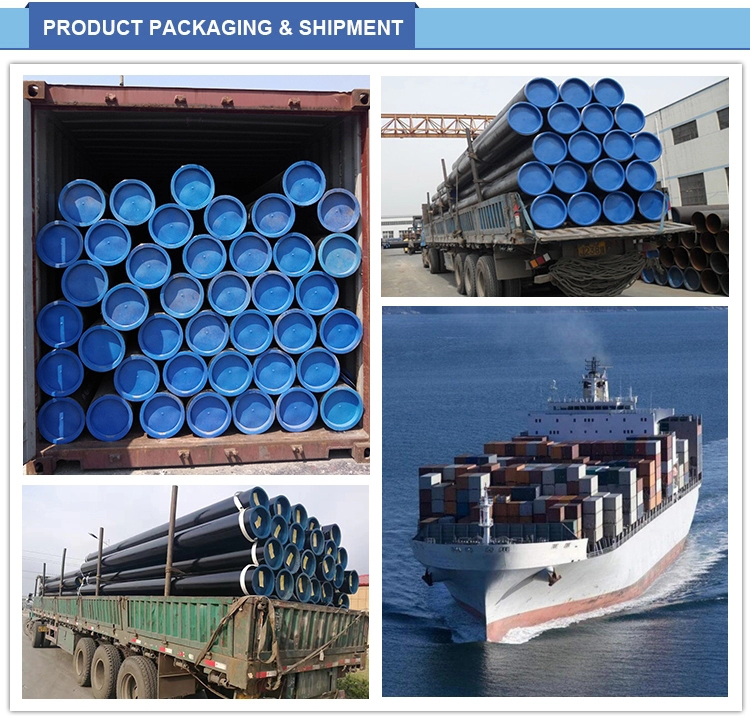

Packaging: in bulding +woven bag+plastic cap on both end
Transportation: Ocean
Place of Origin: Foshan City, Guangdong Provi
Supply Ability: Within 30 days and Depends on your order quantity
Port: g,u,a
The tubes shall be furnished in the following shapes: round, square, rectangular and special sections. Heat analysis shall be made to determine the percentages of the elements specified. If secondary melting processes are used, the heat analysis shall be obtained from one remelted ingot or the product of one remelted ingot of each primary melt. The tubing shall be coated with a film of oil before shaping to retard rust when specified
| 1. Out Diameter: | 13.7mm-914mm |
| 2. Wall Thickness: | 2mm-120mm |
| 3. Length: | 3m-12m |
| 4. Producing Standard: | American ASME B36.10M, ASTM, API 5L, API 5CTJapanese JISGerman DINChinese GBBS standard |
| 5. Main Material:(Carbon Steel & Low Alloy steel) | ASTM A53, A106, A210, A252, A333 etc;X42, X46, X52, X60, X65, X70 etc;JIS STPG42, G3454, G3456 etc;German St37, St42, St45, St52, DIN1626, DIN17175Chinese 20#, Q345, 16Mn etc |
| 6. Special specifications: | Available according to customer’s requirements and quantity. |
| 7. End Shape: | Beveled end , plain end, varnished, or adding plastic caps to protect the two ends as per customer’s requirements |
| 8. Surface treatment: | Painted, Oiled, galvanized, phosphate etc |
| 9. Usage: | Widely used in the mechanical treatment field, petrochemical industry, transport and construction fieldOrdinary structural purposes and mechanic structural purposes, for example in construction field, fulcrum bearing etc;The transportation of fluids in the projects and big equipments, for example transport of water, oil, gas etcCan be used in low and medium pressure boiler for the transportation of fluids, for example steam tube, big smoke tube, small smoke tube, generating tube etc |
| 10. Certificates: | ISO,CE, API 5L certificate |
| 11. Third party inspection: | Welcome you to send a third party inspecting company (BV, SGS etc) to check the quality of our final products. |
Chemical Composition ( % ) :
| The Chemical Composition for Carbon steel | ||||
| Grade | Chemical composition (%) | |||
| C | Mn | P | S | |
| 1010 | 0.08-0.13 | 0.30-0.60 | =0.040 | =0.050 |
| 1020 | 0.18-0.23 | 0.30-0.60 | =0.040 | =0.050 |
| 1045 | 0.43-0.50 | 0.30-0.90 | =0.040 | =0.050 |
| 1518 | 0.15-0.21 | 1.10-1.40 | =0.040 | =0.050 |
| The Chemical Composition for Alloy Steel | ||||||||
| Grade | Chemical composition (%) | |||||||
| C | Mn | P max | S max | Si | Ni | Cr | Mo | |
| 4118 | 0.18-0.23 | 0.70-0.90 | 0.04 | 0.04 | 0.15-0.35 | - | 0.40-0.60 | 0.08-0.15 |
| 4130 | 0.28-0.33 | 0.40-0.60 | 0.04 | 0.04 | 0.15-0.35 | - | 0.80-1.10 | 0.15-0.25 |
| 4135 | 0.32-0.39 | 0.65-0.95 | 0.04 | 0.04 | 0.15-0.35 | - | 0.80-1.10 | 0.15-0.25 |
| 4140 | 0.38-0.43 | 0.75-1.00 | 0.04 | 0.04 | 0.15-0.35 | - | 0.80-1.10 | 0.15-0.25 |
Mechanical Properties :
| Grade | State | Tensile Strength | Yield Strength | Elongation | Hardness | ||
| Ksi | Mpa | Ksi | Mpa | % | (HB) | ||
| 1020 | HR | 50 | 345 | 32 | 221 | 25 | 55 |
| CW | 70 | 483 | 60 | 414 | 5 | 75 | |
| SR | 65 | 448 | 50 | 345 | 10 | 72 | |
| A | 48 | 331 | 28 | 193 | 30 | 50 | |
| N | 55 | 379 | 34 | 234 | 22 | 60 | |
| 1045 | HR | 75 | 517 | 45 | 310 | 15 | 80 |
| CW | 90 | 621 | 80 | 552 | 5 | 90 | |
| SR | 80 | 552 | 70 | 483 | 8 | 85 | |
| A | 65 | 448 | 35 | 241 | 20 | 72 | |
| N | 75 | 517 | 48 | 331 | 15 | 80 | |
| 4130 | HR | 90 | 621 | 70 | 483 | 20 | 89 |
| SR | 105 | 724 | 85 | 586 | 10 | 95 | |
| A | 75 | 517 | 55 | 379 | 30 | 81 | |
| N | 90 | 621 | 60 | 414 | 20 | 89 | |
| 4140 | HR | 120 | 855 | 90 | 621 | 15 | 100 |
| SR | 120 | 855 | 100 | 689 | 10 | 100 | |
| A | 80 | 552 | 60 | 414 | 25 | 85 | |
| N | 120 | 855 | 90 | 621 | 10 | 100 | |
Painted, Oiled, galvanized, phosphate etc
