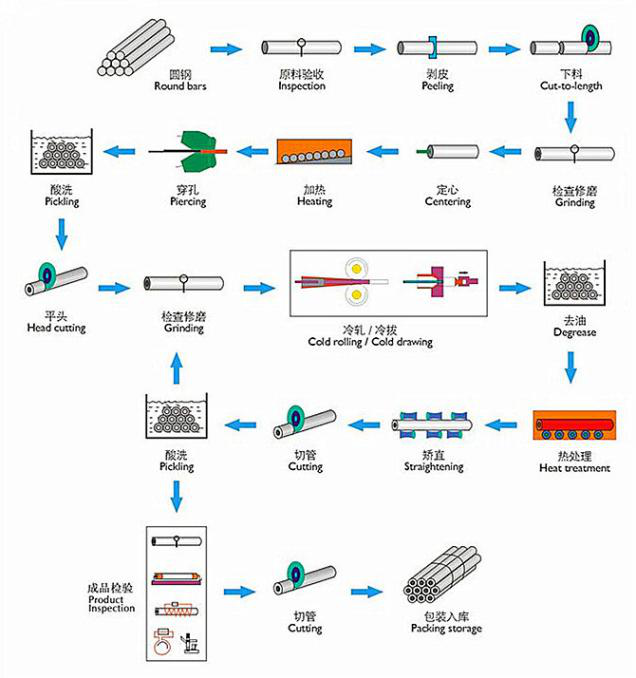

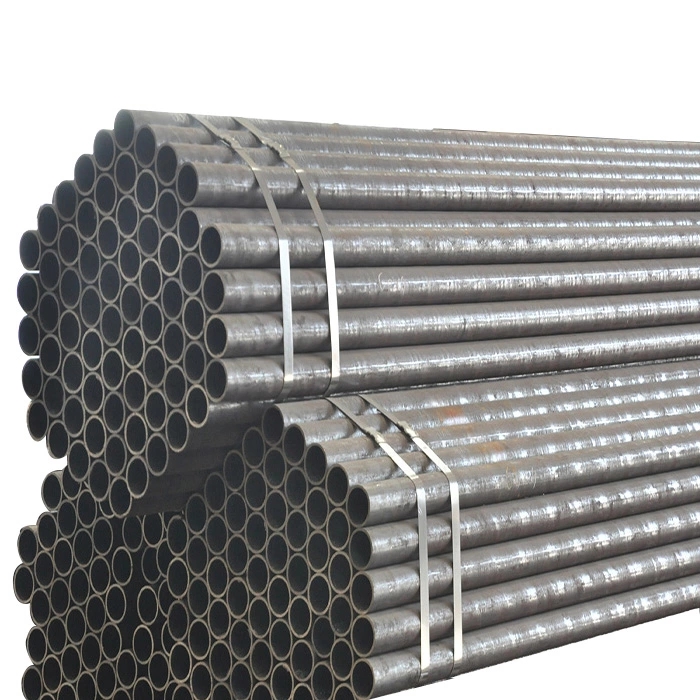

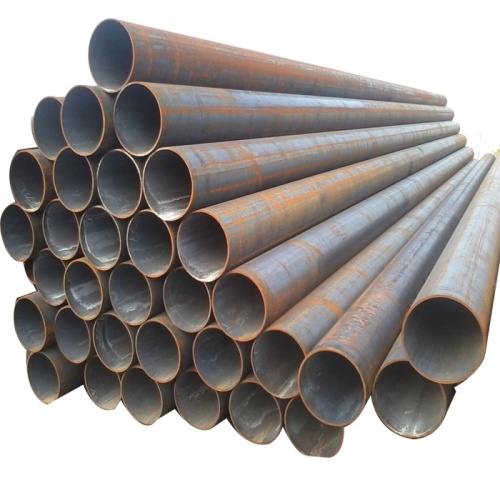

Structural Steel Pipes: High-Performance Solutions for Industrial and Construction Applications Overview Structural steel pipes are essential components in modern engineering, offering exceptional strength-to-weight ratios, durability, and versatility across a wide range of applications. These pipes are manufactured using advanced techniques such as hot rolling, cold drawing, and welding, ensuring precise dimensions and superior mechanical properties. Designed to meet international standards like GB/T8162-2008 for seamless structural tubes and GB/T3091-2008 for low-pressure fluid transport, they provide reliable performance under demanding conditions. Whether used in building frameworks, machinery parts, or pressure systems, these steel pipes combine robustness with flexibility in design and installation. Key Features - **Material Grades**: Available in multiple grades including 1020, 1025, 4130, and 4140, each tailored for specific load-bearing requirements and environmental exposures. - **Processing Options**: Offered in various heat treatments—Annealed (A), Normalized (N), Stress Relieved (SR), Cold Finished (CW), and Quenched & Tempered—for optimized hardness, ductility, and dimensional stability. - **Dimensional Flexibility**: Hot-rolled seamless pipes range from 32mm to 630mm outer diameter with wall thicknesses between 2.5mm and 75mm; cold-drawn versions offer tighter tolerances with diameters from 5mm to 200mm and walls from 2.5mm to 12mm. - **Welded Variants**: Straight-welded and spiral-welded options available, conforming to GB/T3793-2008 specifications for enhanced structural integrity in pipelines and scaffolding. - **Corrosion Resistance**: Galvanized and stainless steel variants ensure longevity in humid, chemical, or outdoor environments, reducing maintenance needs over time. Detailed Description The manufacturing process begins with high-quality carbon steel billets that undergo either extrusion or rolling to form seamless

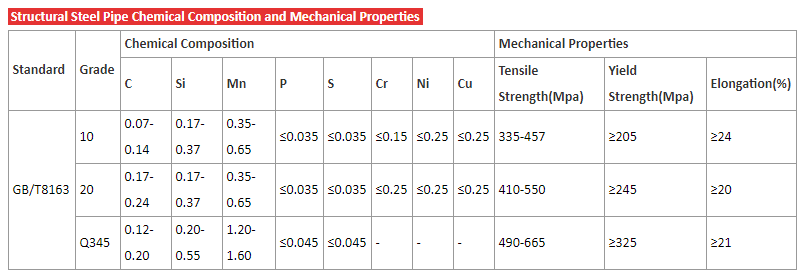

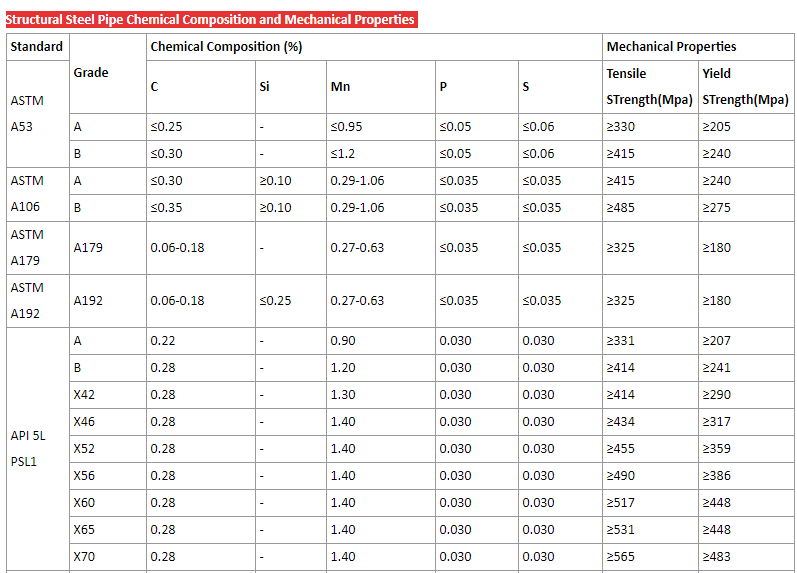

Tubing. For welded pipes, precision-formed steel strips are joined via electric resistance welding or submerged arc methods, resulting in uniform seams and consistent mechanical behavior. Each batch is subjected to rigorous quality control, including tensile testing, yield strength verification, and elongation assessments to ensure compliance with global industrial norms. The table below outlines key mechanical properties across different grades and treatment conditions: | Grade | Condition | Tensile Strength (MPa min) | Yield Strength (MPa min) | Elongation (%) min | |-------|-----------|-----------------------------|--------------------------|--------------------| | 1020 | CW | 414 | 483 | 5 | | 1020 | SR | 345 | 448 | 10 | | 1020 | A | 193 | 331 | 30 | | 1020 | N | 234 | 379 | 22 | | 1025 | CW | 448 | 517 | 5 | | 1025 | SR | 379 | 483 | 8 | | 4130 | SR | 586 | 724 | 10 | | 4130 | A | 379 | 517 | 30 | | 4140 | SR | 689 | 855 | 10 | | 4140 | N | 621 | 855 | 20 | This comprehensive data allows engineers and procurement teams to select the ideal pipe type based on project-specific stress levels, temperature ranges, and expected service life. Additionally, surface finishes such as galvanization or stainless steel coatings enhance resistance to rust and abrasion, making them suitable for both indoor and outdoor use. Applications These structural steel pipes are widely adopted in infrastructure projects, including bridge supports, high-rise buildings, and industrial equipment frames. In mechanical engineering, they serve as shafts, columns, and support structures where fatigue resistance and impact toughness are critical. They also function effectively in oil and gas transmission lines, HVAC systems, and agricultural irrigation setups due to their ability to withstand internal pressure while maintaining shape under external loads. Their adaptability makes them indispensable in construction, energy, transportation, and manufacturing sectors worldwide. Customer Feedback Users consistently praise the consistency in dimensional accuracy and ease of assembly when working with these pipes. One engineer noted, “The 4140 grade with quench-and-temper treatment delivered excellent hardness without brittleness—perfect for heavy-duty crane arms.” Another user highlighted the value of pre-treated surfaces: “We saved significant time on site because the galvanized pipes required no additional coating before installation.” Overall, customers appreciate the balance between cost-effectiveness and long-term reliability offered by this product line. Frequently Asked Questions What distinguishes hot-rolled from cold-drawn structural steel pipes? Hot-rolled pipes are formed at elevated temperatures, offering greater ductility and suitability for large-scale structural elements, whereas cold-drawn pipes have tighter dimensional tolerances and improved surface finish, ideal for precision applications. Are there corrosion-resistant options available? Yes, galvanized and stainless steel variants provide protection against moisture and chemicals, extending operational lifespan in harsh environments. How do I choose the right grade for my project? Select based on your required tensile strength, ductility needs, and environmental exposure. For example, 1020 is suitable for general-purpose framing, while 4140 offers superior strength for aerospace or automotive components. Can these pipes be cut or bent on-site? Absolutely—they can be easily machined, welded, or threaded using standard tools, allowing for customization during installation. Is this product compliant with international safety standards? All products adhere to recognized material specifications such as ASTM, EN, and ISO equivalents, ensuring safe and predictable performance across diverse industries.
