Galvanized Steel Beams I Beam I-Beams

A galvanized steel I-beam is a type of structural steel beam that has been hot-dip galvanized to provide protection against corrosion. The galvanization process involves immersing the steel beam in a bath of molten zinc, which creates a metallurgical bond between the zinc coating and the steel surface Alloy Steel Pipe, ASTM A213, Tubing

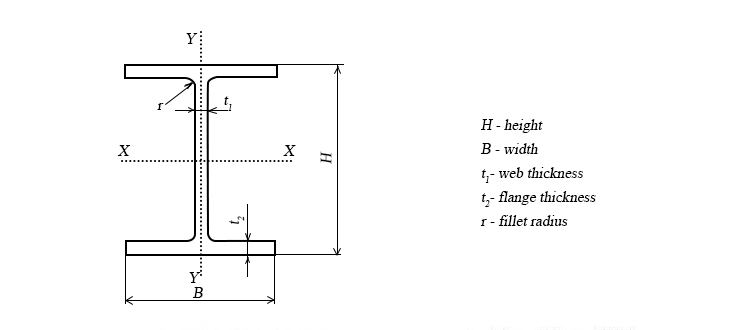

型		截面尺寸/mm				截面积/cm2	理论重量/（kg/m）
		H×B	吨1	吨2	r
HN公司	175×90	175×90	5	8	10	23.21	18.2
	200×100	198×99	4.5	7	13	23.59	18.5
		200×100	5.5	8	13	27.57	21.7
	250×125	248×124	5	8	13	32.89	25.8
		250×125	6	9	13	37.87	29.7
	300×150	298×149	5.5	8	16	41.55	32.6
		300×150	6.5	9	16	47.53	37.3
	350×175	346×174	6	9	16	53.19	41.8
		350×175	7	11	16	63.66	50
	400×150	400×150	8	13	16	71.12	55.8

标准：JIS G3192 ASTM A36 A572 Gr.50

牌号：Q235/SS400 S235JR S355JR

大小	国标 KG/M		JIS重量KG/M	大小	GB 重量KG/M		JIS重量KG/M
100*100*6*8	17.20		16.90	400*200*8*13	66.00		65.40
125*125*6.5*9	23.80		23.60	400*150*8*13	55.80		55.20
148*100*6*9	21.40		21.10	400*400*13*21	172.00
150*75*5*7	14.30		14.00	400*408*21*21	197.00
150*150*7*10	31.90		31.10	414*405*18*28	233.00		232.00
175*90*5*8	18.20		18.00	414*202*10*20	94.50		93.90
175*175*7.5*11	40.30		40.40	428*407*20*35	284.00		283.00
194*150*6*9	31.20		29.90	440*300*11*18	124.00		121.00
198*99*4.5*7	18.50		17.80	446*199*8*12	66.70		65.10
200*100*5.5*8	21.70		20.90	450*200*9*14	76.50		74.90
200*200*8*12	50.50		49.90	470*202*11*24	115.20
200*204*12*12	56.70		56.20	482*300*11*15	115.00		111.00
244*175*7*11	44.10		43.60	488*300*11*18	129.00		125.00
248*124*5*8	25.80		25.10	496*199*9*14	79.50		77.90
250*125*6*9	29.70		29.00	500*200*10*16	89.60		88.20
250*250*9*14	72.40		71.80	510*206*16*21	129.00
250*255*14*14	82.20		81.60	512*202*12*22	114.00
294*200*8*12	57.30		55.80	506*201*11*19	103.00		102.00
294*302*12*12	85.00		83.40	582*300*12*17	137.00		133.00
298*149*5.5*8	32.60		32.00	588*300*12*20	151.00		147.00
298*201*9*14	65.90		64.40	594*302*14*23	175.00		170.00
300*150*6.5*9	37.30		36.70	596*199*10*15	95.10		92.50
300*300*10*15	94.50		93.00	600*200*11*17	106.00		103.00
300*305*15*15	106.00		105.00	600*304*16*26	198.00		194.00
338*351*13*13	106.00			606*201*12*20	120.00		118.00
340*250*9*14	79.70		78.10	692*300*13*20	166.00		163.00
344*348*10*16	115.00		113.00	700*300*13*24	185.00		182.00
344*354*16*16	131.00			708*304*15*28	216.00
346*174*6*9	41.80		41.20	792*300*14*22	191.00		188.00
350*175*7*11	50.00		49.40	800*300*14*26	210.00		207.00
350*350*12*19	137.00		135.00	900*300*16*28	243.00		240.00
350*357*19*19		156.00
388*402*15*15		141.00		140.00
390*300*10*16		107.00		105.00
394*398*11*18		147.00		147.00
394*405*18*18		169.00
396*199*7*11		56.70		56.10

Steel Grade	Yield Strength  (N/mm2)	Tensile Strength   (N/mm2)	Elongation After Fracture  (%)
Q235B	≥235	370-500	≥26
Q355B	≥355	450-630	≥21
SS400B	≥245	400-510	≥17

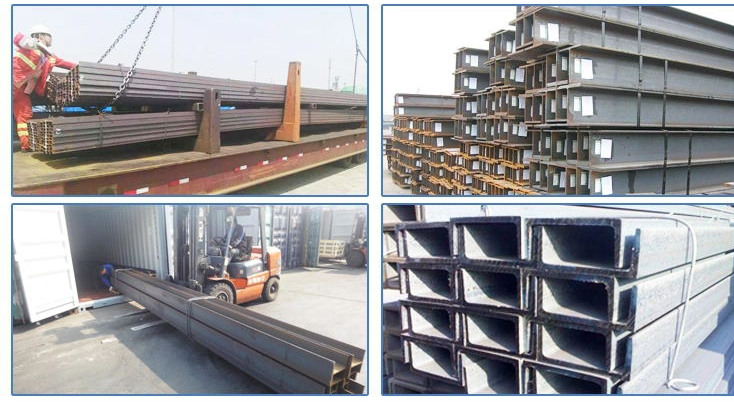

packing
Standard airworthy export packaging, waterproof paper, steel strip packaging, and other types of packaging can be customized according to various requirements.
Transportation packaging
Bundle sturdy steel strips for easy loading and unloading.
