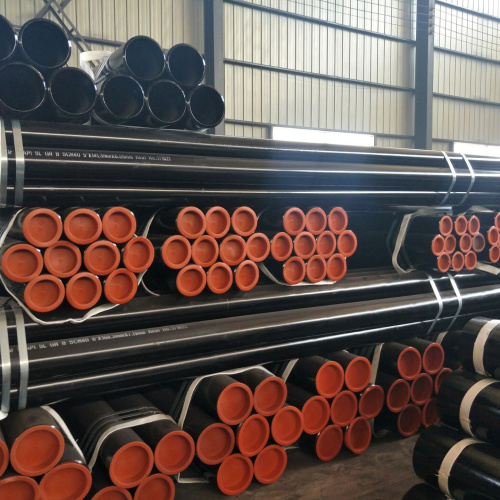

EN 10204 Seamless Pipe

Basic Info

Standard: Gb, Astm, Din, Api

Section Shape: Round

Place Of Origin: China

Application: Fluid Pipe, Boiler Pipe, Hydraulic Pipe, Gas Pipe, Oil Pipe, Chemical Fertilizer Pipe, Structure Pipe

Surface Treatment: Galvanized

Category: Welded Steel Pipe

Processing Service: Welding

Additional Info

Packaging: Bundles,seaworthy packing

Transportation: Ocean

Supply Ability: Within 30 days and Depends on your order quantity

Port: guangnannansha

Product Description

EN 10204 Hot Rolled Steel Pipe for low and medium pressure boiler,high pressure boiler,ship-building,liquid service,petroleum cracking, chemical fertilizer equipment,drawing-oil-equipment and structure purposes.Cold Drawn Seamless Pipe

Size	OD	1/2" -24" (13.7mm-609.6mm)
	Wall Thickness	1.6mm-28mmSCH20,SCH40,STD,XS,SCH80,SCH160,XXS
	Length	5.8M Length, 6M Length or 12M Length or as requested
Steel material	20#,16Mn,St37,St52,St44, etc
Standard	API 5L,ASTM A53,ASTM A106,GB/T 8163,GB/T 8162,DIN 17175,DIN 2448 etc Nickel Alloy Pipe
PRODUCTIVITY	5000MTONS PER MONTH
Usage	1)low pressure liquid, water, gas, oil, line pipe2)construction3)fence, door pipe
Ends	1) Plain2) Beveled3) Thread with Coupling or cap4) Chamfer5) Groove6) Screw
End protector	1) Plastic pipe cap2) steel socket
Surface Treatment	1) Bared2) Black Painted (varnish coating)3) hot dipped Galvanized4) Oiled5) PE,3PE, FBE, corrosion resistant coating, Anti corrosion coating.
Type	cold drawn, hot rolled
Section Shape	Round
Inspection	With Hydraulic Testing, Eddy Current , Infrared Test
Date of Delivery	Within 30 days and Depends on your order quantity.

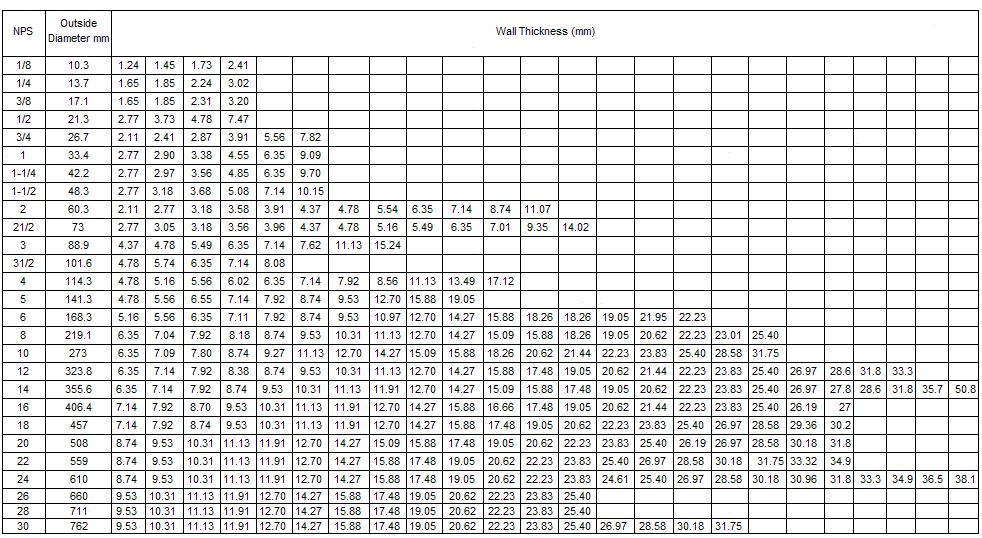

Some Size Of EN 10204 Hot Rolled Steel Pipe

Nominal	Pipe size	OD mm	Schedule STD		Schedule 40		Schedule 60		Schedule Extra	Strong (XS)
Mm	Inch		Wall	Wt.	Wall	Wt.	Wall	Wt.	Wall	Wt.
3	1/8	10.3	1.73	0.37	1.73	0.357			2.41	0.47
6	¼	13.7	2.24	0.63	2.24	0.625			3.02	0.804
10	3/8	17.1	2.31	0.84	2.31	0.84			3.2	1.1
15	½	21.3	2.77	1.26	2.77	1.26			3.73	1.62
20	¾	26.7	2.87	1.69	2.87	1.68			3.91	2.2
25	1	33.4	3.38	2.5	3.38	2.5			4.55	3.24
32	1 1/4	42.2	3.56	3.39	3.56	3.38			4.85	4.47
40	1 1/2	48.3	3.68	4.05	3.68	4.05			5.08	5.41
50	2	60.3	3.9	5.44	3.9	5.44			5.5	7.48
65	2 1/2	73	5.2	8.63	5.16	8.63			7	11.41
80	3	88.9	5.5	11.3	5.5	11.3			7.62	15.3
90	31/2	1.6	5.74	13.57	5.74	13.57			8.08	18.63
100	4	114.3	6.02	16.07	6.02	16.07			8.56	22.3
125	5	141.3	6.6	21.77	6.55	21.77			9.53	30.9
150	6	168.3	7.11	28.26	7.11	28.26			10.97	42.5
200	8	219.1	8.2	42.5	8.2	42.5	10.3	53.1	12.7	64.6
250	10	273	9.27	60.3	9.27	60.3	12.7	81.5	12.7	81.5
300	12	323.9	9.53	73.8	10.3	79.7	14.3	109	12.7	97.4
350	14	355.6	9.53	81.3	11.13	94.3	15.1	126.4	12.7	107
400	16	406.4	9.53	93.3	12.7	123	16.7	160	12.7	123
450	18	457.2	9.53	105	14.3	156	19	206	12.7	130
500	20	508	9.53	177.2	15.1	183	20.6	248	12.7	155.1
550	22	558.8	9.53	129			22.2	294	12.7	171
600	24	609.6	9.53	141	17.4	255	24.5	355	12.7	187

Summary of documentation requirements for EN 10204:2004

EN 10204	Documentation Type	Document Content	Authorized By
Type 2.1	Certificate of Compliance	Statement of compliance with order	Manufacturer
Type 2.2	Material	Statement of compliance with order and indication of results of non-specific inspection	Manufacturer Alloy welded pipe
Type 3.1	Inspection Certificate	Statement of compliance with order and indication of test results carried out as defined by product specification	Manufacturer’s authorized representative, independent of manufacturing department
Type 3.2	Inspection Certificate	Statement of compliance with order, indication of test results carried out as defined by product specification and indication of 3rd Party witness to purchaser’s specified scope of testing.	Manufacturer’s authorized representative, independent of manufacturing department and purchaser’s authorized representative or inspector designated by official regulations.
