ASTM A53/A106 Seamless Pipe

Basic Info

Standard: Bs, Jis

Section Shape: Round

Application: Boiler Pipe, Hydraulic Pipe, Gas Pipe, Oil Pipe, Structure Pipe

Category: Welded Steel Pipe

Processing Service: Welding

Additional Info

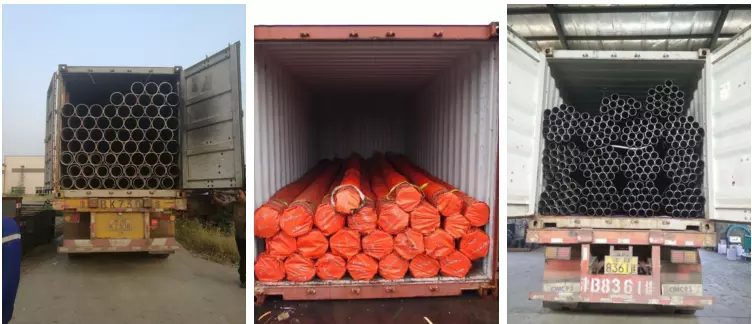

Packaging: Bundle or bulk , seaworthy packing or for the client's requirement

Transportation: Ocean

Supply Ability: Within 30 days and Depends on your order quantity

Port: guangzhounansha

Product Description

Using for machining. It is used in a wide range of applications, including but not limited to refineries, compressor stations, natural gas transmission, steam conduction, and generator plants.EN 10204 Seamless Pipe

ASTM A53 Carbon Steel Pipe covers seamless, welded, black, and hot-dipped galvanized pipe.

Standard	BS 1387, BS EN 10297, BS 4568, BS EN10217, JIS G3457
Grade	10#-45#, Cr-Mo alloy, 15NiCuMoNb5, 10Cr9Mo1VNb, A53-A369
Out diameter	21.3 - 610 mm
Wall thickness	2 - 50 mm
Section Shape	Round
Application	Fluid Pipe
Surface Treatment	varnished,cap,marking
Certification	API
Carbon Steel Pipe	ASTM A53/106/API 5L B
ST37/ST44 Precision Seamless Steel Pipe	DIN 2448/2391/1629/17100
DIN 2391/2448/1629,ST37/ST52 steel pipe	ST37/ST52
Hot Rolled Seamless Steel Pipe	ASTM A 53/106/API 5L B
Cold Drawn Seamless Steel Boiler Tube	ASTM A106/DIN 17175/2448
Carbon Seamless Steel Pipe	ASTM A53/106/API 5L B

ASTM A53 carbon steel pipe covers seamless, welded, black, and hot-dipped galvanized pipe.

ASTM A53 GRADE A&B

This specification covers seamless and welded black and hot-dipped galvanized steel pipe in nominal size 1/8” in. To 20 in. Inclusive (3.18mm-660.4mm) with nominal (average) wall thickness .

ASTM A106 GRADES A, B & C

This specification covers seamless carbon steel pipe for high temperature service in nominal size 1/8 in. To 26 in. Inclusive (3.18mm-660.4mm)with nominal (average) wall thickness .

Grade A Carbon 0.25% max. Manganese 0.27 to 0.93%

Grade B Carbon 0.30% max. Manganese 0.29 to 1.06%

Grade C Carbon 0.35% max. Manganese 0.29 to 1.06%

All grades have same values for Sulphur 0.058% max. Phosphorus 0.048% max. Silicon 0.20% min.

Chemical Composition (%):

Standard	Grade	C	Si	Mn	P	S	Ni	Cr	Cu	Mo	V
ASTM A53M	A	=0.25	-	=0.95	=0.05	=0.045	=0.40	=0.40	=0.40	=0.15	=0.08
ASTM A53M	B	=0.30	-	=1.2	=0.05	=0.045	=0.40	=0.40	=0.40	=0.15	=0.08

Mechanical Properties:

Standard	Grade	Tensile strength (Mpa)	Yield strength (Mpa)	Elongation (%)
					ASTM A53M	A	=330	=205	See table 3 of ASTM A53

Standard	Grade	C	Si	Mn	P	S	Ni	Cr	Cu	Mo	V
ASTMA106M	A	=0.25	=0.10	0.27-0.93	=0.035	=0.035	=0.40	=0.40	=0.40	=0.15	=0.08
	B	=0.30	=0.10	0.29-1.06	=0.035	=0.035	=0.40	=0.40	=0.40	=0.15	=0.08
	C	=0.35	=0.10	0.29-1.06	=0.035	=0.035	=0.40	=0.40	=0.40	=0.15	=0.08
