Guangdong Tonglian Pipeline Technology Co., Ltd
Precision Seamless Carbon Pipe 1,Seamless Precision Tubing
Guangdong Tonglian Pipeline Technology Co., Ltd
Precision Seamless Carbon Pipe 1,Seamless Precision Tubing
Standard: Gb, Din
Section Shape: Round
Place Of Origin: China
Application: Fluid Pipe, Hydraulic Pipe, Gas Pipe, Oil Pipe, Chemical Fertilizer Pipe, Structure Pipe
Category: Welded Steel Pipe
Processing Service: Welding

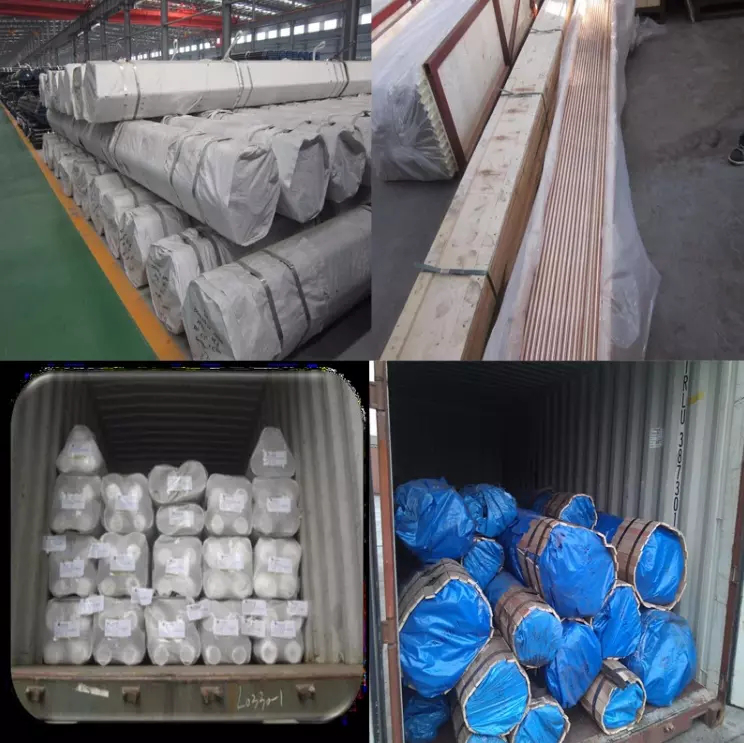

Packaging: Bundled/In Bulk, Plastic Caps Plugged, Waterproof Paper Wrapped
Transportation: Ocean
Supply Ability: Within 30 days and Depends on your order quantity
Port: guangzhounansha

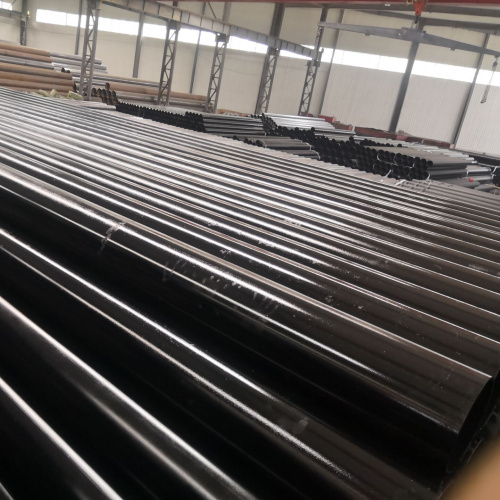

Precision seamless pipe is a pipe material producing by a cold drawn process with high precision and high-quality finish. Due to the characteristics of high-precision, in precision machinery manufacturing, auto parts, hydraulic cylinders, construction (steel sleeve) industry has a very wide range of applications.
Characteristics of precision seamless pipe
1. high precision, saving the loss when the quantity of machining users.
2. specifications, a wide range of applications.
3. cold-rolled finished products, high precision, good surface quality and straightness.
4. steel pipe inner diameter can be made hexagonal.
5. steel pipe superior performance, the metal is relatively dense.
| Nominal size | Nominal Wall Thickness (mm) |
| DN | SCH |
| 12.70 | 1.0, 1.2, 1.6, 2.0 |
| 13.50 | 1.0,1.2 |
| 16.00 | 1.0,1.2 |
| 17.20 | 1.0,1.2,1.6 |
| 19.00 | 1.0,1.2,1.6 |
| 20.00 | 1.0,1.2,1.6 |
| 21.30 | 1.0,1.2,1.67 |
| 22.00 | 1.0,1.2,1.6,2.0 |
| 25.40 | 1.0,1.2,1.6,2.0 |
| 26.90 | 1.0,1.2,1.6,2.0 |
| 28.50 | 1.0,1.2,1.6,2.0 |
| 30.00 | 1.0,1.2,1.6,2.0 |
| 31.80 | 1.0,1.2,1.6,2.0 |
| 33.70 | 1.0,1.2,1.6,2.0 |
| 38.00 | 1.0,1.2,1.6,2.0 |
| 42.40 | 1.0,1.2,1.6,2.0 |
| 44.50 | 1.0,1.2,1.6,2.0 |
| 48.30 | 1.0,1.2,1.6,2.0 |
| 51.00 | 51.00 |
Technical Parameters of Precision Seamless Steel Tubes:
| Outside Diameter (mm) / | SCH | SCH | SCH | STD | SCH | SCH | XS | SCH | SCH | SCH | SCH | SCH |
| 457 | 6.35 | 7.92 | 11.13 | 9.53 | 14.27 | 19.05 | 12.70 | 23.88 | 29.36 | 34.93 | 39.67 | 45.24 |
| 508 | 6.35 | 9.53 | 12.70 | 9.53 | 15.09 | 20.62 | 12.70 | 26.19 | 32.54 | 38.10 | 44.45 | 50.01 |
| 559 | 6.35 | 9.53 | 12.70 | 9.53 | 22.23 | 12.70 | 28.58 | 34.93 | 41.28 | 47.63 | 53.98 | |
| 610 | 6.35 | 9.53 | 14.27 | 9.53 | 17.48 | 24.61 | 12.70 | 30.96 | 38.39 | 46.02 | 52.37 | 59.54 |
| 660 | 7.92 | 12.70 | 9.53 | 12.70 | ||||||||
| 711 | 7.92 | 12.70 | 15.88 | 9.53 | 12.70 | |||||||
| 762 | 7.92 | 12.70 | 15.88 | 9.53 | 12.70 | |||||||
| Remark: The above standard and specification are just for reference, we can also produce customized product according to customer’s request. | ||||||||||||
Surface: Bare, Lightly Oiled, Black/Red/Yellow Painting, Zinc/Anti-corrosive Coating
Product Categories : Seamless Steel Pipe > Hot Expanded Seamless Pipe
