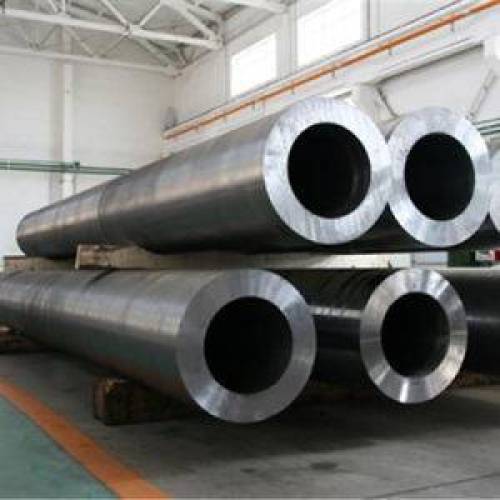

Large caliber titanium steel

Titanium seamless tube is processed by the breakdown of titanium ingot, extruding to titanium tube billet. Then produce titanium tubes to appropriate size with series of processes such as multiple rolling, annealing, pickling, and grinding technology.

Titanium welded tube is by selecting a suitable thickness of the high quality cold rolled titanium plate, after the process of flattening, cutting and washing, then rolled up titanium plate into tubular, welding by the whole automatic welding equipment. Our advanced welding equipment guaranteed the quality of welding. Ultimately help to produce the excellent quality titanium tube  Hollow Section

Titanium seamless tube

Grade: Gr1, Gr2, Gr7, Gr9, Gr11, Gr12, Gr16 etc

Outer diameter: 3～110mm

Wall thickness: 0.1~5.5mm

Length: ≤19000mm

Titanium weld tube

Grade: Gr1, Gr2, Gr7, Gr9, Gr11, Gr12, Gr16 etc

Outer diameter: 10～1000mm

Wall thickness: 0.5～5.5mm

Length: ≤19000mm

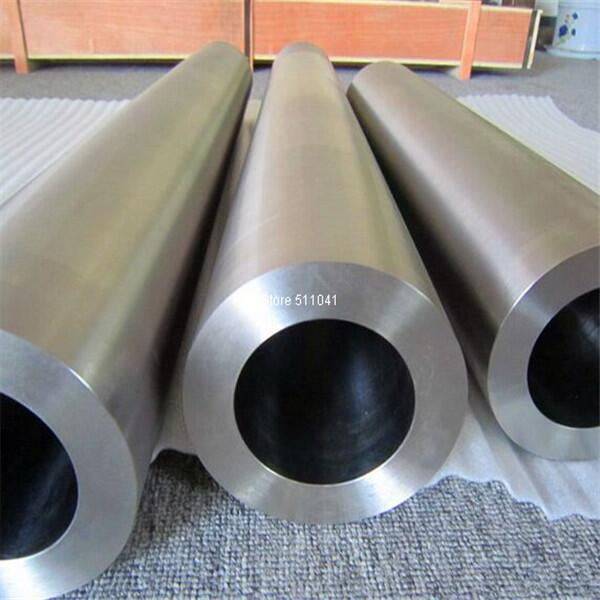

Gr5, Gr23 titanium alloy seamless tube

Outer diameter: 20～110mm

Wall thickness: 1～50mm

Length: ≤3000mm

Manufacturing process: Drilling, Hot Rolling
