Titanium Threaded Bolts,Titanium Hexagonal Nut
Guangdong Tonglian Pipeline Technology Co., Ltd
Titanium Threaded Bolts,Titanium Hexagonal Nut
Standard: Astm, Din
Place Of Origin: China

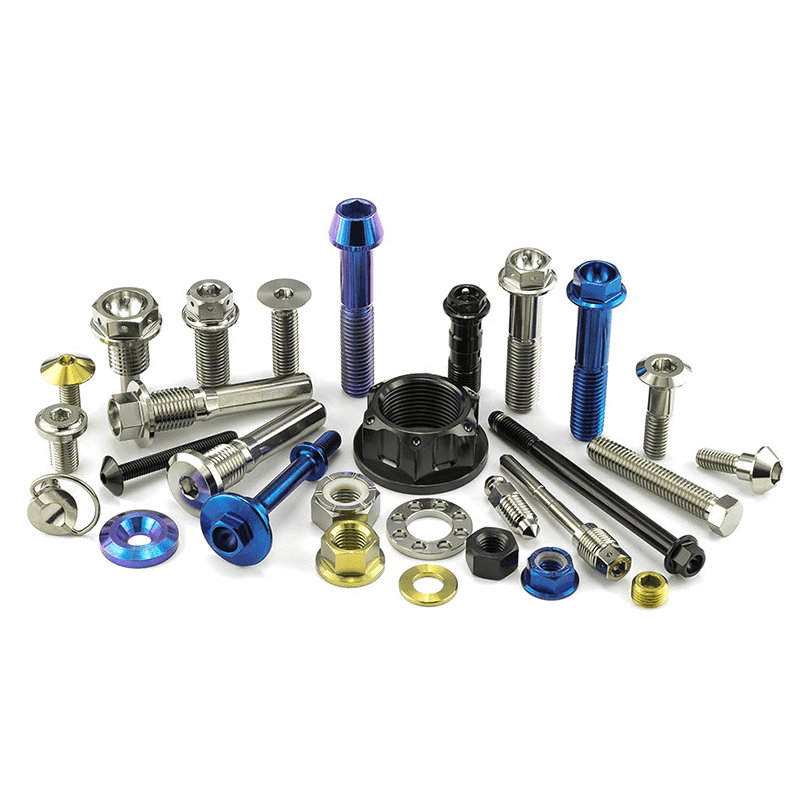

Our company has a lot of titanium fasteners inventory, which can satisfy the global small amount of orders and those customers with urgent delivery requirement. At the same time, we also provide non-standard products according to drawings provided by customers.
Application Channel Petroleum, metallurgy, chemical, electronic, pharmaceutical, Marine engineering, auto parts, motorcycle parts, bicycle parts, yacht accessories, outdoor survival supplies, sporting goods and other fields.
Titanium bolt
| Product | Titanium and Titanium alloy bolt Alloy welded pipe |
| Size | Diameter: M1.6-M30, Length: 10mm-300mm (0.39″-11.8″) |
| Material | Gr.1, Gr.2, Gr.5, Gr.7 etc |
| Standard | DIN912, DIN6912, DIN933, DIN931 etc |

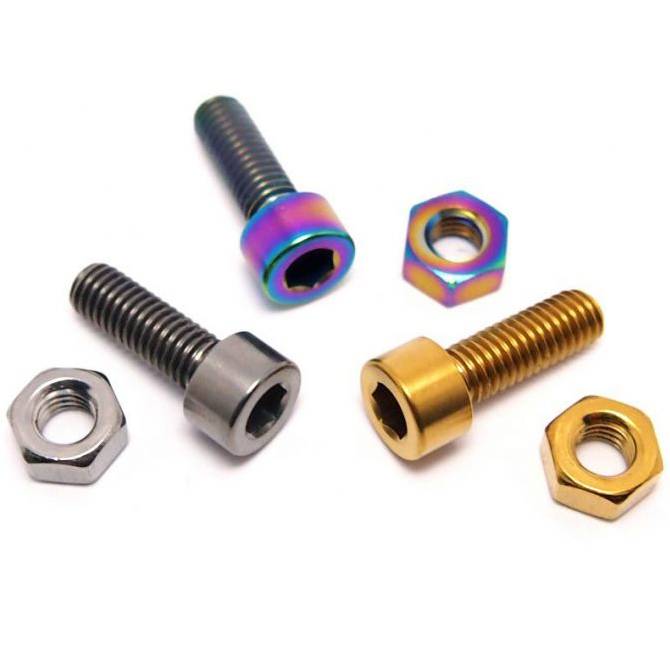

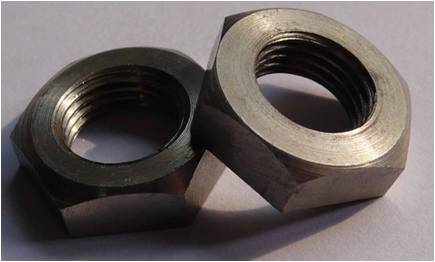

Titanium hex nut
| Product | Titanium and Titanium alloy nut |
| Size | M8-M 80 x 6 |
| Material | Gr1, Gr2, Gr5, Gr7, Ti6Al4V ELI, etc |
| Standard | DIN, ISO, JIS, etc. |
Titanium washer
| Product | Titanium and Titanium alloy washer |
| Size | OD: 5mm-200mm (0.20″-7.87″), ID: 1mm-100mm (0.04″-3.94″), Thickness: 0.1mm-30mm (0.004″-1.18″) |
| Material | Gr.2, Gr.5 etc |
| Standard | DIN125 etc |

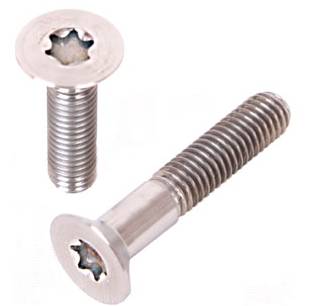

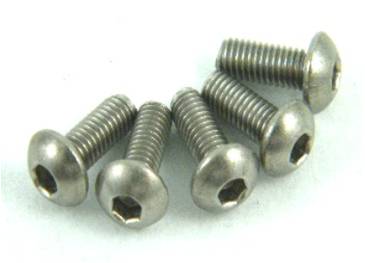

Titanium screw
| Product | Titanium and Titanium alloy screw |
| Size | M1 to M42, Length: 10mm-300mm (0.39″-11.8″) |
| Material | Gr1, Gr.2, Gr.5, Gr.7, Gr.12 etc |
| Standard | DIN912, DIN933, DIN84, DIN85, DIN963, DIN7991, DIN6912, DIN931, ISO7380, etc. |
Titanium threaded stud
| Product | Titanium and Titanium alloy threaded stud |
| Size | Diameter: M1.6-M30, Length: 10mm-300mm (0.39″-11.8″) |
| Material | Gr.1, Gr.2, Gr.5, Gr.7, Gr.23 etc |
| Standard | DIN912, DIN933, DIN7991, DIN7984, DIN6921, ISO 7380, JIS, BS etc. |

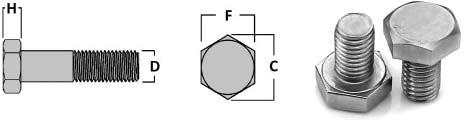

Titanium Hex Bolts Dimensions
| Heavy Hex Bolt Diameter | D | F | C | H | |||||
| Body Diameter | Width Across Flats | Width Across Corners | Height | ||||||
| Max | Basic | Max | Min | Max | Min | Basic | Max | Min | |
| 1/2 | 0.515 | 7/8 | 0.875 | 0.850 | 1.010 | 0.969 | 11/32 | 0.364 | 0.302 |
| 5/8 | 0.642 | 1-1/16 | 1.062 | 1.031 | 1.227 | 1.175 | 27/64 | 0.444 | 0.378 |
| 3/4 | 0.768 | 1-1/4 | 1.250 | 1.212 | 1.443 | 1.383 | 1/2 | 0.524 | 0.455 |
| 7/8 | 0.895 | 1-7/16 | 1.438 | 1.394 | 1.660 | 1.589 | 37/64 | 0.604 | 0.531 |
| 1 | 1.022 | 1-5/8 | 1.625 | 1.575 | 1.876 | 1.796 | 43/64 | 0.700 | 0.591 |
| 1-1/8 | 1.149 | 1-13/16 | 1.812 | 1.756 | 2.093 | 2.002 | 3/4 | 0.780 | 0.658 |
| 1-1/4 | 1.277 | 2 | 2.00 | 1.938 | 2.309 | 2.209 | 27/32 | 0.876 | 0.749 |
| 1-3/8 | 1.404 | 2-3/16 | 2.188 | 2.119 | 2.526 | 2.416 | 29/32 | 0.940 | 0.810 |
| 1-1/2 | 1.531 | 2-3/8 | 2.375 | 2.300 | 2.742 | 2.622 | 1 | 1.036 | 0.902 |
| 1-3/4 | 1.785 | 2-3/4 | 2.750 | 2.662 | 3.175 | 3.035 | 1-5/32 | 1.196 | 1.054 |
| 2 | 2.039 | 3-1/8 | 3.125 | 3.025 | 3.608 | 3.449 | 1-11/32 | 1.388 | 1.175 |
| 2-1/4 | 2.305 | 3-1/2 | 3.500 | 3.388 | 4.041 | 3.862 | 1-1/2 | 1.548 | 1.327 |
| 2-1/2 | 2.559 | 3-7/8 | 3.875 | 3.750 | 4.474 | 4.275 | 1-21/32 | 1.708 | 1.479 |

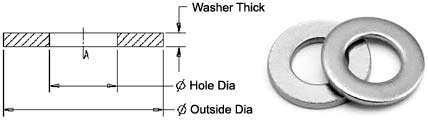

Titanium Flat Washer Dimensions
| Ti Alloy Bolt Size | USS | SAE | ||||
| OD (in.) | ID (in.) | Thickness | OD (in.) | ID (in.) | Thickness | |
| 1/8 (#6) | - | - | - | 0.375 | 0.156 | .036/.065 |
| 5/32 (#8) | - | - | - | 0.438 | 0.188 | .036/.065 |
| 3/16 (#10) | 0.560 | 0.250 | .036/.065 | 0.500 | 0.220 | .036/.065 |
| 7/32 (#12) | - | - | - | 0.562 | 0.250 | .051/.080 |
| 1/4 (#14) | 0.734 | 0.312 | .051/.080 | 0.625 | 0.281 | .051/.080 |
| 5/16 | 0.875 | 0.375 | .064/.104 | 0.688 | 0.344 | .051/.080 |
| 3/8 | 1.000 | 0.438 | .064/.104 | 0.812 | 0.406 | .051/.080 |
| 7/16 | 1.250 | 0.500 | .064/.104 | 0.922 | 0.469 | .051/.080 |
| 1/2 | 1.375 | 0.562 | .086/.132 | 1.062 | 0.531 | .074/.121 |
| 9/16 | 1.469 | 0.625 | .086/.132 | 1.156 | 0.594 | .074/.121 |
| 5/8 | 1.750 | 0.688 | .108/.160 | 1.312 | 0.656 | .074/.121 |
| 3/4 | 2.000 | 0.812 | .122/.177 | 1.469 | 0.812 | .108/.160 |
| 7/8 | 2.250 | 0.938 | .136/.192 | 1.750 | 0.938 | .108/.160 |
| 1 | 2.500 | 1.062 | .136/.192 | 2.000 | 1.062 | .108/.160 |
| 1 1/8 | 2.750 | 1.250 | .136/.192 | 2.250 | 1.250 | .108/.160 |
| 1 1/4 | 3.000 | 1.375 | .136/.192 | 2.500 | 1.375 | .136/.192 |
| 1 3/8 | 3.250 | 1.500 | .153/.213 | 2.750 | 1.500 | .136/.213 |
| 1 1/2 | 3.500 | 1.625 | .153/.213 | 3.000 | 1.625 | .153/.213 |
| 1 5/8 | 3.750 | 1.750 | .153/.213 | - | - | - |
| 1 3/4 | 4.000 | 1.875 | .153/.213 | - | - | - |
| 1 7/8 | 4.250 | 2.000 | .153/.213 | - | - | - |
| 2 | 4.500 | 2.125 | .153/.213 | - | - | - |
| 2 1/4 | 4.750 | 2.375 | .193/.248 | - | - | - |
| 2 1/2 | 5.000 | 2.625 | .210/.280 | - | - | - |
| 2 3/4 | 5.250 | 2.875 | .228/.310 | - | - | - |
| 3 | 5.500 | 3.125 | .249/.327 | - | - | - |

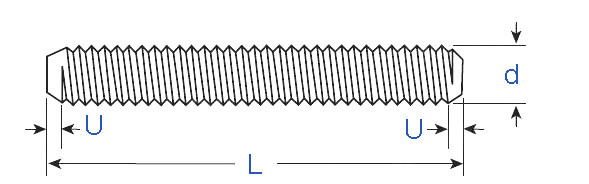

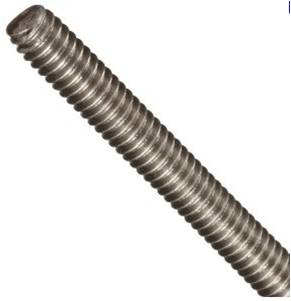

Titanium threaded stud
| ANSI /ASMEB 18.31.2 Threaded Rods-Unit:inch | ||||
| d | pitch | |||
| UNC | UNF | 8UN | ||
| 1/4 | 0.25 | 20 | 28 | / |
| 5/16 | 0.3125 | 18 | 24 | / |
| 3/8 | 0.375 | 18 | 24 | / |
| 7/16 | 0.4375 | 14 | 20 | / |
| 1/2 | 0.5 | 13 | 20 | / |
| 9/16 | 0.5625 | 12 | 18 | / |
| 5/8 | 0.625 | 11 | 18 | / |
| 3/4 | 0.75 | 10 | 16 | / |
| 7/8 | 0.875 | 9 | 14 | / |
| 1 | 1 | 8 | 12 | 8 |
| 1-1/8 | 1.125 | 7 | 12 | 8 |
| 1-1/4 | 1.25 | 7 | 12 | 8 |
| 1-3/8 | 1.375 | 6 | 12 | 8 |
Chemical Material Composition Of Titanium Fasteners
