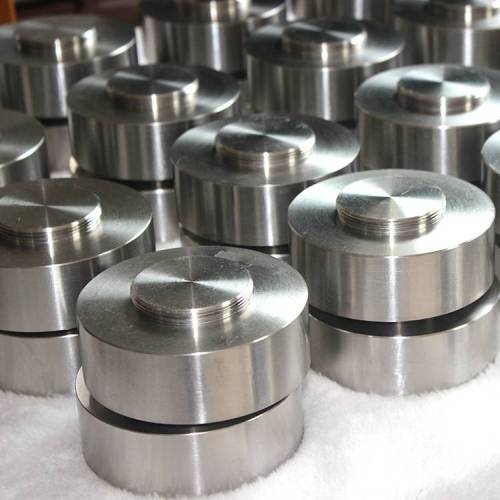

Titanium Target Sputtering,Titanium Aluminium Target,Magnesium Sputtering Target
Guangdong Tonglian Pipeline Technology Co., Ltd
Titanium Target Sputtering,Titanium Aluminium Target,Magnesium Sputtering Target
Section Shape: Round
Place Of Origin: China
Packaging: Paper/Plastic and Carton
Transportation: Ocean
Supply Ability: Within 30 days, depending on your order quantity

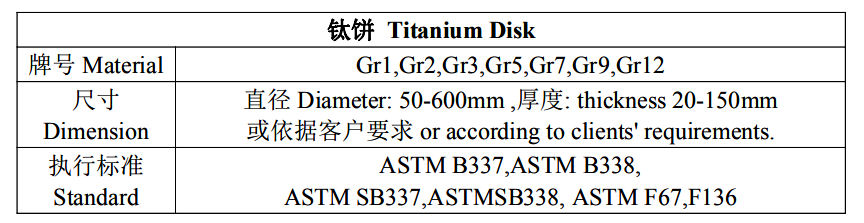

| Name | Size(MM) | Grade | Specification |

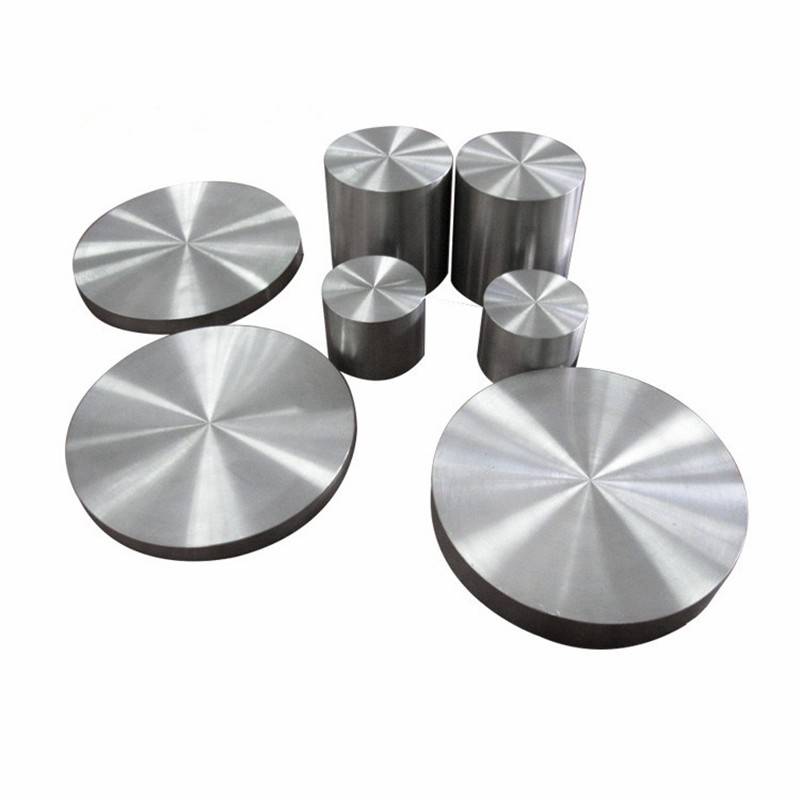

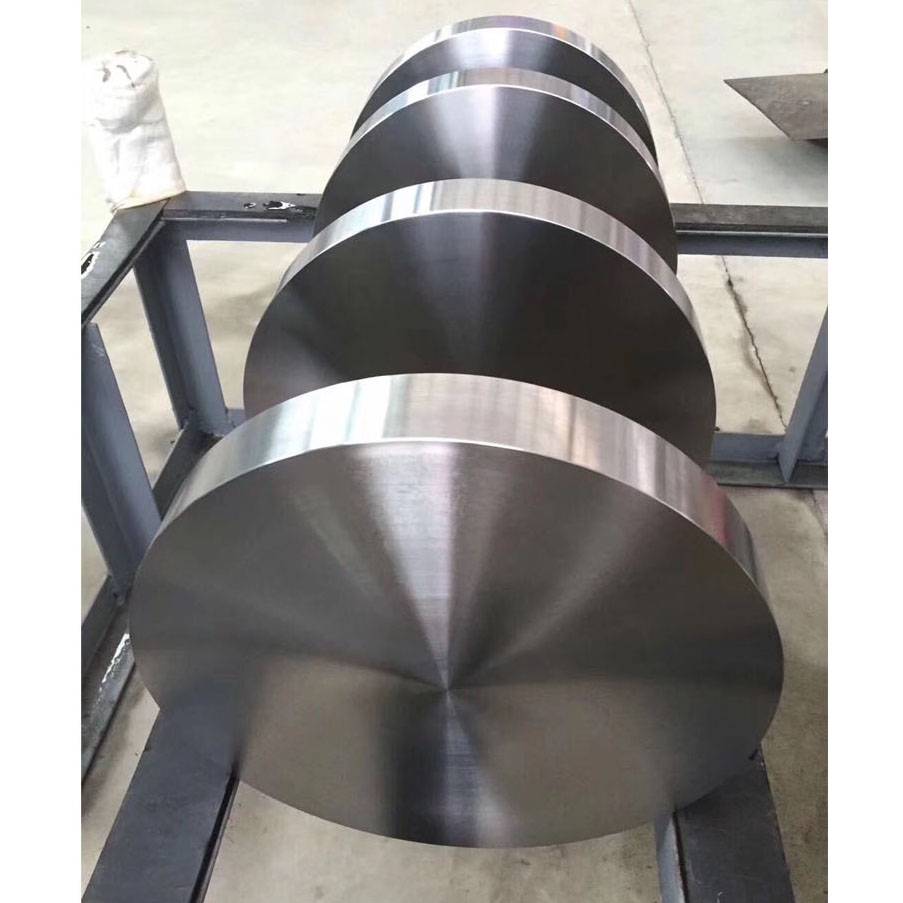

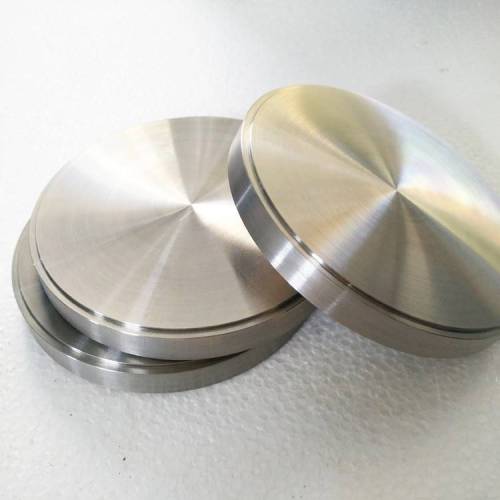

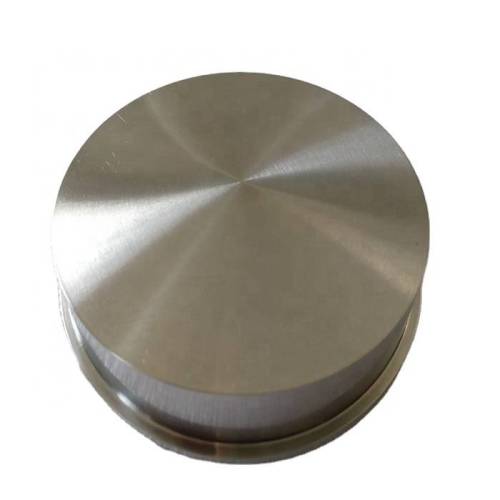

| Titanium Disc | φ50-1000 Height:35-110 | TA1,TA2, TA3,TA4, TC4, TC11, TC15etc | GB/T,GJB, ASTM,A |
| Product | Size(mm) | Grade Nos | Specification | |
| Diameter | Section Height | |||
| Titanium & Titanium Alloy Discs | Φ(150~300) | 20~600 | TA1,TA2,TA3, TA4,TA9,TA10, TA15,TC4 | GB/T,ASTM, ASME,AMS, ISO,JIS,MIL |
| Φ(300~500) | 20~600 | |||
| Φ(500~1100) | 35~600 | |||

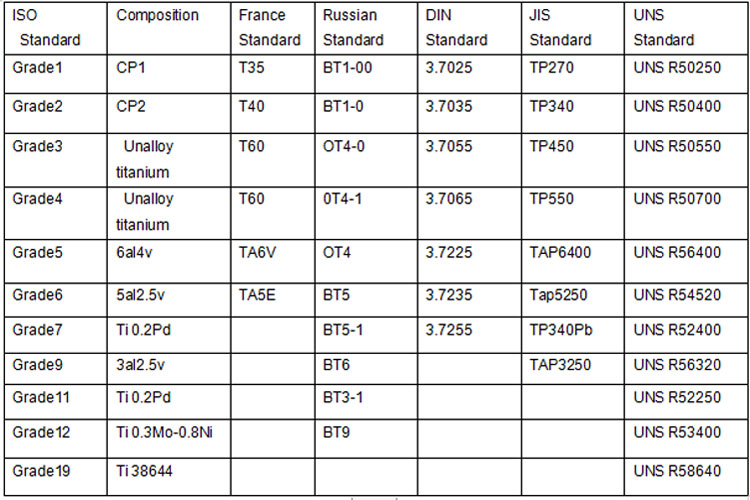

UNS No.
| UNS No. | UNS No. | ||||
| Gr1 | UNS R50250 | CP-Ti | Gr11 | UNS R52250 | Ti-0.15Pd |
| Gr2 | UNS R50400 | CP-Ti | Gr12 | UNS R53400 | Ti-0.3Mo-0.8Ni |
| Gr4 | UNS R50700 | CP-Ti | Gr16 | UNS R52402 | Ti-0.05Pd |
| Gr7 | UNS R52400 | Ti-0.20Pd | Gr23 | UNS R56407 | Ti-6Al-4V ELI |
| Gr9 | UNS R56320 | Ti-3Al-2.5V | |||
Chemical composition
| Grade | Chemical composition, weight percent (%) | ||||||||||||
| C (≤) | O (≤) | N (≤) | H (≤) | Fe (≤) | Al | V | Pd | Ru | Ni | Mo | Other Elements Max. each | Other Elements Max. total | |
| Gr1 | 0.08 | 0.18 | 0.03 | 0.015 | 0.20 | — | — | — | — | — | — | 0.1 | 0.4 |
| Gr2 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | — | — | — | — | 0.1 | 0.4 |
| Gr4 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | — | — | — | — | 0.1 | 0.4 |
| Gr5 | 0.08 | 0.20 | 0.05 | 0.015 | 0.40 | 5.5～6.75 | 3.5～4.5 | — | — | — | — | 0.1 | 0.4 |
| Gr7 | 0.08 | 0.25 | 0.03 | 0.015 | 0.30 | — | — | 0.12～0.25 | — | 0.12～0.25 | — | 0.1 | 0.4 |
| Gr9 | 0.08 | 0.15 | 0.03 | 0.015 | 0.25 | 2.5～3.5 | 2.0～3.0 | — | — | — | — | 0.1 | 0.4 |
| Gr11 | 0.08 | 0.18 | 0.03 | 0.15 | 0.2 | — | — | 0.12～0.25 | — | — | — | 0.1 | 0.4 |
| Gr12 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | — | — | — | — | 0.6～0.9 | 0.2～0.4 | 0.1 | 0.4 |
| Gr16 | 0.08 | 0.25 | 0.03 | 0.15 | 0.3 | — | — | 0.04～0.08 | — | — | — | 0.1 | 0.4 |
| Gr23 | 0.08 | 0.13 | 0.03 | 0.125 | 0.25 | 5.5～6.5 | 3.5～4.5 | — | — | — | — | 0.1 | 0.1 |
Physical properties
| Grade | Physical properties | |||||
| Tensile strength Min | Yield strength Min (0.2%, offset) | Elongation in 4D Min (%) | Reduction of Area Min (%) | |||
| ksi | MPa | ksi | MPa | |||
| Gr1 | 35 | 240 | 20 | 138 | 24 | 30 |
| Gr2 | 50 | 345 | 40 | 275 | 20 | 30 |
| Gr4 | 80 | 550 | 70 | 483 | 15 | 25 |
| Gr5 | 130 | 895 | 120 | 828 | 10 | 25 |
| Gr7 | 50 | 345 | 40 | 275 | 20 | 30 |
| Gr9 | 90 | 620 | 70 | 483 | 15 | 25 |
| Gr11 | 35 | 240 | 20 | 138 | 24 | 30 |
| Gr12 | 70 | 483 | 50 | 345 | 18 | 25 |
| Gr16 | 50 | 345 | 40 | 275 | 20 | 30 |
| Gr23 | 120 | 828 | 110 | 759 | 10 | 15 |

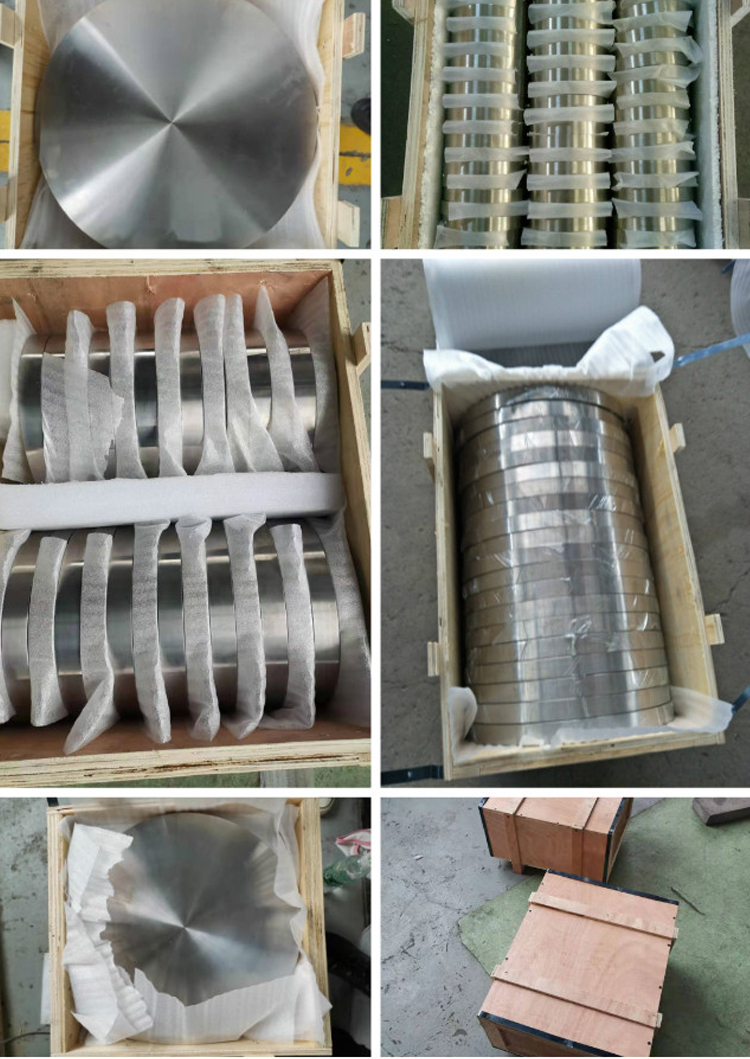

For the packing of small quantity products : Paper/Plastic and Carton
For the packing of large quantity products : Paper/foam inside,wooden pallet outside.Cold Drawn Seamless Pipe, Alloy Welded Pipe, Nickel Alloy Pipe
