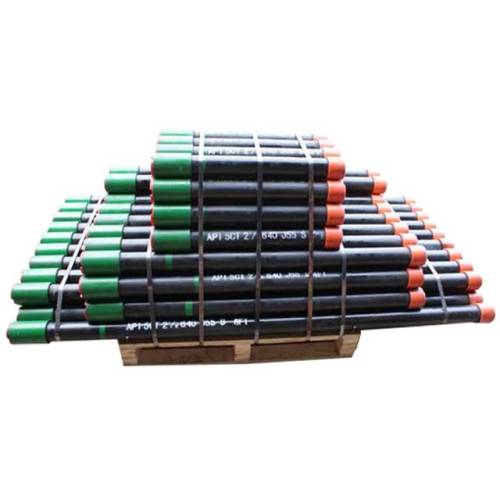

Juvenile tube connector pup Joint

Pup Joint for Oilfield Applications – High-Strength, Corrosion-Resistant Tubing Solutions

Designed for precision in drilling and completion operations, pup joints are short-length connectors used to fine-tune the length of tubular strings such as casing or tubing. These specialized components ensure optimal alignment and structural integrity in demanding downhole environments. Manufactured from premium AISI 4145H or 4140H alloy steel, each pup joint undergoes heat treatment to achieve a Brinell hardness range of 285–341 HBW, with a minimum impact toughness of 40 ft-lb at 70°F measured via a Charpy V-notch test at one inch below the surface. This ensures reliable performance under extreme mechanical stress while maintaining ductility and resistance to fatigue failure.

Available in standard lengths of 5’, 10’, 15’, and 20’ feet, these pup joints can be customized for non-standard configurations upon request. The product line includes both tubing and casing variants, each tailored to meet API 5CT specifications and engineered for high-pressure, high-temperature conditions. For sour service applications—where hydrogen sulfide exposure poses corrosion risks—specialized versions like the PJ-110 PUP S utilize ASCOWELL C material, offering enhanced resistance to sulfide stress cracking (SSC) and superior yield strength compared to conventional grades.

Key features include: - Material: Modified alloy steel (AISI 4145H / 4140H) - Hardness: 285–341 HBW - Impact Strength: ≥40 ft-lb @ 70°F - Surface Treatment: Phosphate coating for wear protection during assembly - Length Options: 2–20 ft (custom lengths available) - Connection Types: EUE/NUE for tubing; BTC/STC/LTC for casing - Grade Compatibility: H40, J55, K55, L80, N80/Q, C90, T95, P110, Q125 - Coating Options: Anti-corrosive paint, internal liner, thermal insulation coatings

The tubing pup joints span nominal outer diameters from 1.05” to 4.5”, while casing pup joints accommodate sizes from 4.5” up to 20”. Wall thickness options include standard and thick-wall construction to suit varying pressure requirements. Mechanical properties adhere strictly to API 5CT standards, with guaranteed tensile strengths ranging from 517 MPa (J55) to 931 MPa (Q125), and yield strengths from 379 MPa to 1034 MPa. Each grade is tested for uniformity in chemical composition, including carbon, manganese, chromium, nickel, molybdenum, and vanadium content, ensuring consistent metallurgical behavior across production batches.

These pup joints are ideal for use in offshore drilling platforms, Arctic oilfields, deepwater wells, and other extreme environments where reliability, dimensional accuracy, and corrosion resistance are critical. Whether deployed in directional drilling, workover operations, or completion string adjustments, they provide seamless integration into existing systems without compromising flow efficiency or mechanical stability. Their robust design supports continuous operation in aggressive chemical environments, making them suitable for sour gas wells, high-salinity formations, and geothermal applications.

Users have consistently praised the durability and precision fit of these pup joints, noting reduced downtime due to fewer connection failures and improved torque control during make-up procedures. Many operators report that the phosphate-treated threads significantly reduce galling during installation, especially when handling large-diameter casings or high-grade materials like P110 or Q125. Additionally, the availability of custom coatings—such as epoxy-based internal linings or polyurethane-based external wraps—has enabled clients to extend service life in corrosive environments, particularly in marine and subsea installations.

Frequently asked questions include inquiries about compatibility with specific drill pipe connections, expected lifespan under cyclic loading, and whether special certifications are required for sour service applications. All units come with full traceability documentation per API 5CT PSL-2 or PSL-3 standards, and many models are qualified for use in sour service environments per NACE MR0175/ISO 15156 guidelines. Customers often seek guidance on selecting between NC and FH thread types based on torque requirements and tool compatibility, with technical support available to assist in component selection for complex well designs.
