Heavy Weight Drill Pipe

Spiral Heavy Duty Drill Pipe – Premium Drilling Solution for Enhanced Performance and Durability

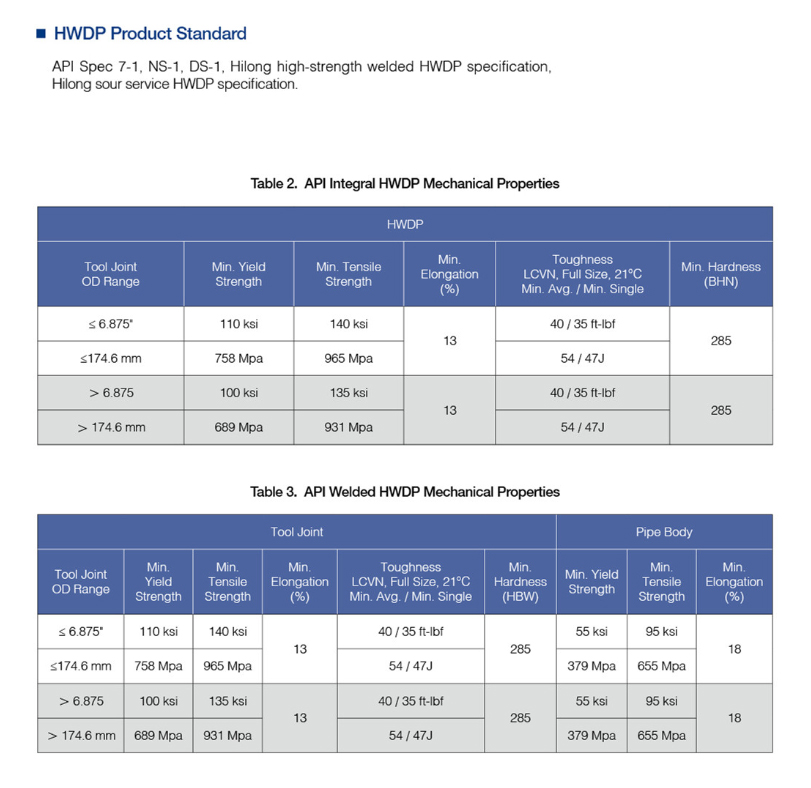

Engineered for demanding drilling environments, the spiral heavy-duty drill pipe serves as a critical transitional component between drill collars and standard drill pipes. Designed to minimize stress concentration at connection points and reduce outer diameter wear, this robust tool ensures superior performance in high-pressure and abrasive conditions. Manufactured from solid AISI 4145H alloy steel, each unit undergoes advanced heat treatment processes to meet or exceed the latest API Spec 7 standards—delivering exceptional tensile strength, fatigue resistance, and corrosion protection.

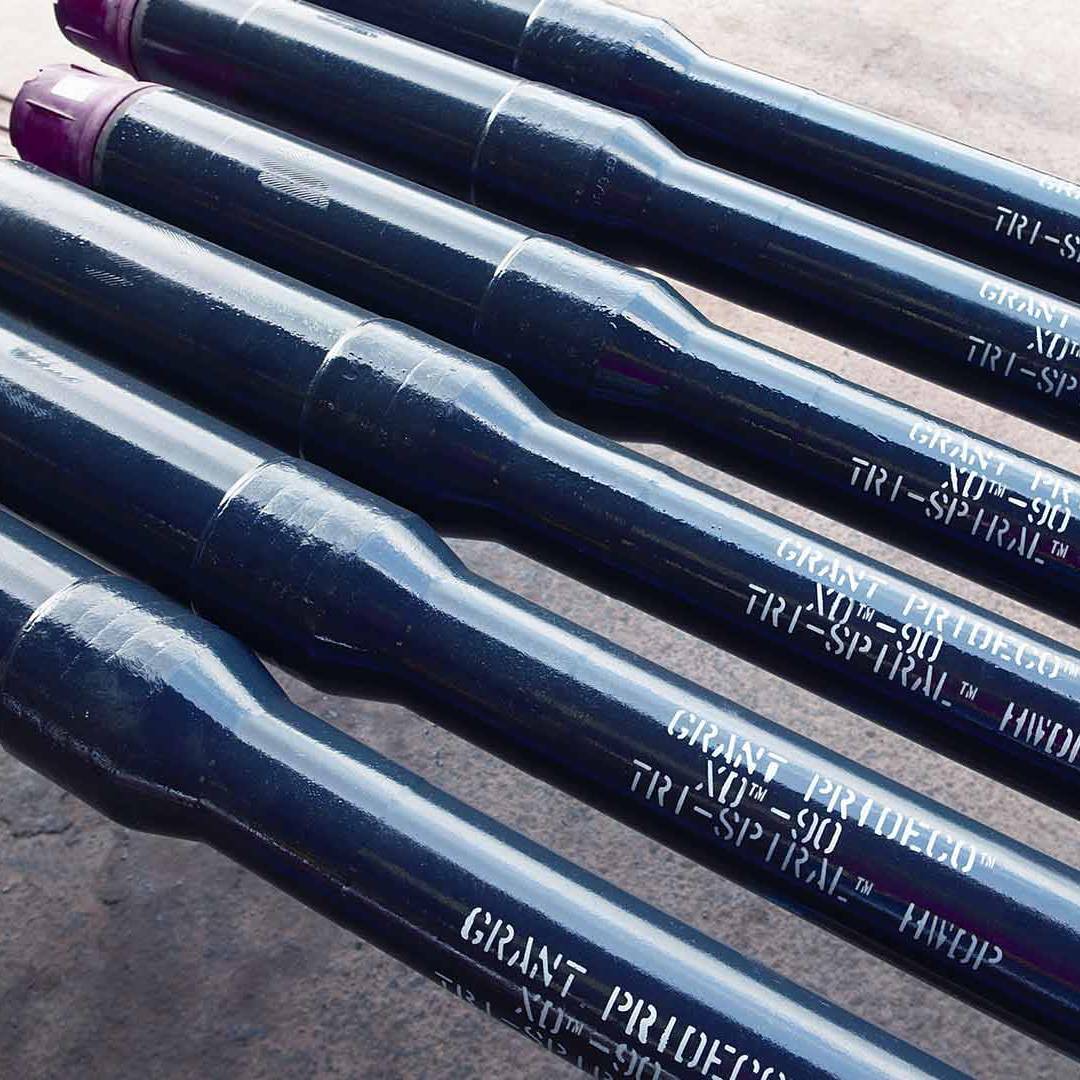

This heavy drill pipe features a spiral groove design that enhances structural integrity while reducing friction during rotation. The wear-resistant hard band—available in premium options such as Arnco 100XT—is integrated into the tool joint area for extended service life. All threads are precision-treated through phosphating, copper plating, or cold working techniques to ensure smooth make-up and reliable sealing under extreme loads. Each connection is protected by a pressed steel thread guard, minimizing damage during handling and storage.

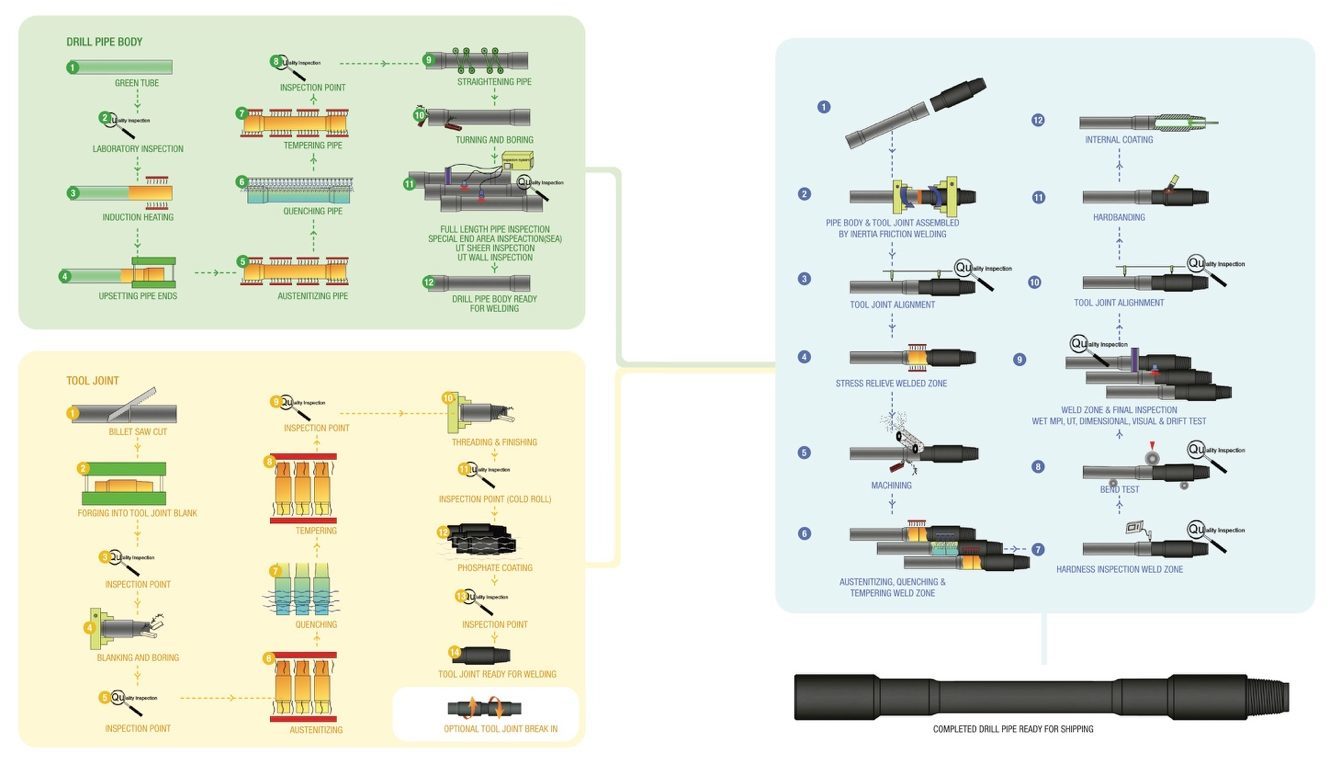

The manufacturing process leverages CNC machining for consistent quality across all components. Double-threaded and special threaded connections offer versatility for various drilling configurations, including directional and horizontal wells. The pipe body is constructed using high-strength alloy welding technology, ensuring uniform wall thickness and minimal internal defects. This results in improved torque transmission, reduced vibration, and enhanced overall drilling efficiency.

Key specifications include multiple sizes: 88.9 mm (3 ½”), 114.3 mm (4 ½”), and 127.0 mm (5”). Each size offers optimized inner diameters, ladder flipping lengths, elevator slots, and spiral groove depths tailored to specific wellbore requirements. For example, the NC38, NC46, and NC50 thread types provide compatibility with industry-standard connections, enabling seamless integration into existing drilling systems. These dimensions are verified through rigorous testing protocols to guarantee compliance with international drilling standards.

Common applications span oil and gas exploration, geothermal energy projects, and deep-water offshore operations where reliability and longevity are paramount. Whether used in conventional rotary drilling, coiled Tubing, or managed pressure drilling, these heavy drill pipes deliver consistent performance in challenging formations—from soft shale to hard rock strata.

Users report significant reductions in connection failures, fewer maintenance interruptions, and improved drilling speed when compared to standard drill pipes. Field engineers appreciate the ease of assembly, durability under continuous operation, and reduced need for frequent replacements—making it a cost-effective choice over time. Many operators highlight the enhanced safety profile due to fewer thread-related issues and better load distribution along the entire string.

Frequently asked questions often center on material certifications, threading methods, and compatibility with different drilling rigs. While some may inquire about customization options, most manufacturers offer standard configurations aligned with API and ISO guidelines. Maintenance recommendations typically involve regular inspection of the hard bands and threads, especially after extended use in abrasive environments. Proper storage practices—such as avoiding direct ground contact and applying protective coatings—are also emphasized to prolong service life.

As part of a comprehensive drilling system, this spiral heavy-duty drill pipe represents an intelligent upgrade path for any operation seeking higher productivity, lower downtime, and greater operational safety. Its combination of innovative design, premium materials, and proven field performance makes it a trusted asset in modern drilling workflows worldwide.
