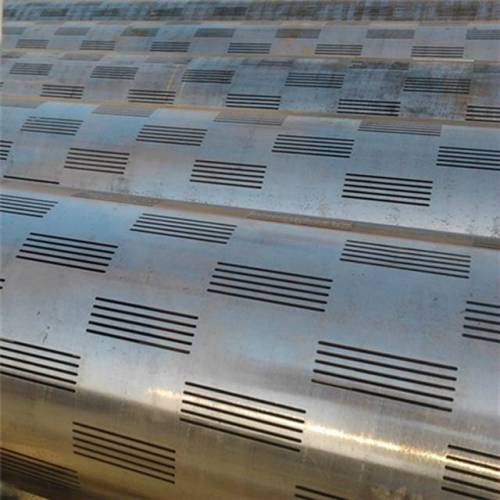

Oil exploration slotted pipe

Additional Info

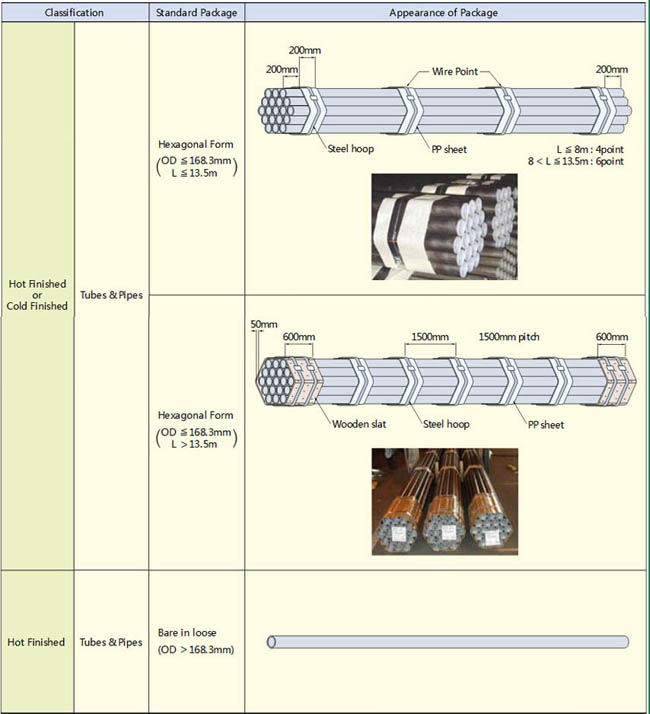

Packaging: as per customer`s requirement

Productivity: Foshan City, Guangdong Provinc

Transportation: Ocean

Place of Origin: Foshan City, Guangdong Province

Supply Ability: as per customer`s requirement

Product Description

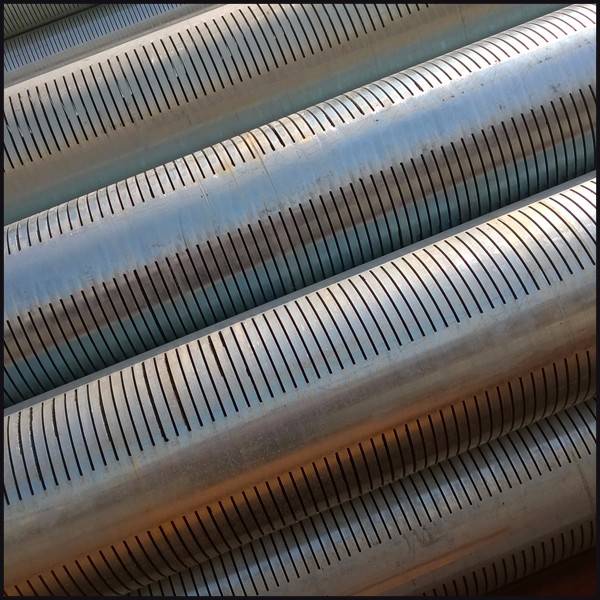

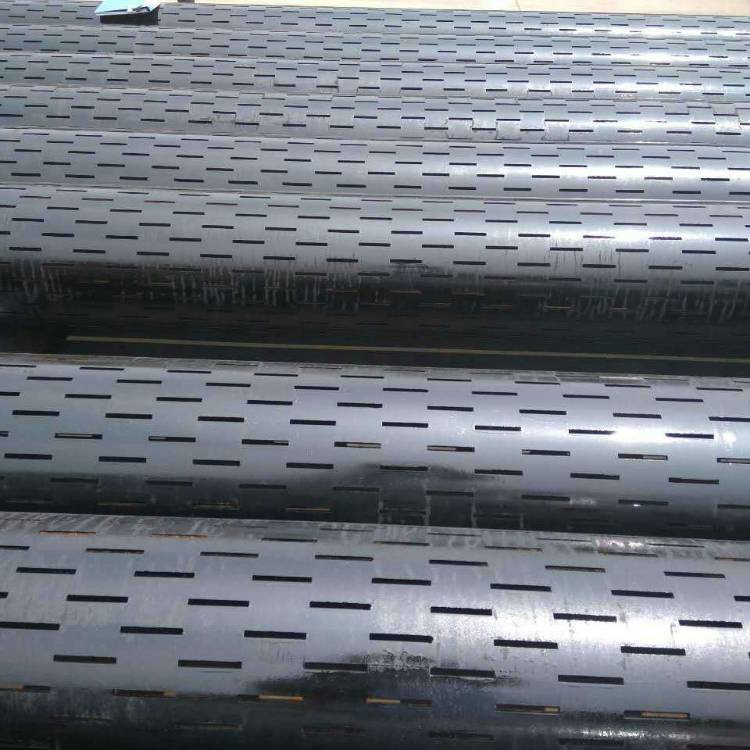

The slotted casing used in oil exploration can prevent 99% of sand, reduce 80% of oil well maintenance, increase the strength of the oil well,Belonging to structural steel pipes, and maintain the integrity and stability of the sand. Meanwhile, laser cutting technology can make the slot smooth and precise. The structure of the slotted sleeve is a sample, but its work efficiency is very high.

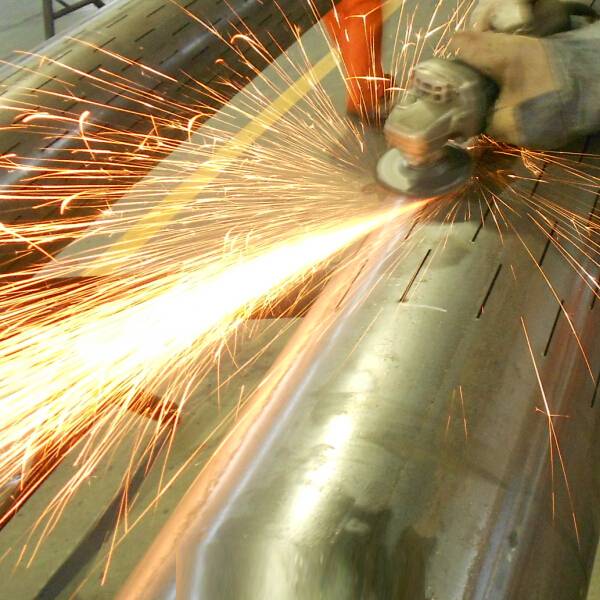

Slotted pipe processing is the process of cutting tens of thousands of longitudinal cracks on high-strength steel bodies using cold or hot processing methods. The common specifications for cracks are: joint width of 0.153 millimeters, or even wider, gap length of 50-200 millimeters, cross-sectional types include rectangular, trapezoidal, special, and diverse, and there is also a circular groove screen with a hole size range of 5-20 millimeters, measured in meters. The cutting quality of slotted screen tube hole seams mainly depends on the accuracy of seam width, the uniformity of hole seam cross-sectional shape, the flatness of hole seam edges, and the corrosion resistance of hole seams

Straight groove - The groove passes through the inner and outer diameter walls of the pipe with equal width. When it is not important to specify the sand bridging at the groove, straight grooves are more wear-resistant than trapezoidal grooves at the joint, and the production cost is lower. The common applications of straight cut grooves are cold production wells, coalbed methane horizontal wells, and SAGD injection wells.
Joint trapezoidal groove - milled wider inside the pipeline and has self-cleaning function to help prevent blockage. The lining surface narrows and the interior widens, allowing incoming sand to easily pass through the groove without clogging

API Casing pipe			ID mm	Length m	Slot Length mm	Slot No. No./m	Slot width mm	Slot Tolerance	Valid Filter Area cm/m	Max. Strength KN
Spec mm	Thickness mm	Per Weight kg/m	ID mm	Length m	Slot Length mm	Slot No. No./m	Slot width mm	Slot Tolerance	Valid Filter Area cm/m	Max. Strength KN
60.32	5	6.84	50.3	3	80	200	0.3	±50	48	512.54
73.02	5.5	9.15	62			240			57.6	688.55
88.9	6.5	13.22	75.9			280			67.2	995.1
101.6	6.5	15.22	88.6			300			72	1151.2
114.3	7	18.47	100.3	10		320			76.8	1400.4
127	7.52	22.13	112			340			81.6	1673.8
139.7	7.72	25.11	124.3			360			86.4	1900.2
139.7	9.17	29.48	121.4			360			86.4	2232.4
168.3	8.94	35.09	150.4			400			96	2672.95
177.8	8.05	33.68	161.7			440			105.6	2559.2
177.8	9.19	38.19	159.4			440			105.6	2940.7

Sreen pipe dimension (in)	OD(mm)	Wall thickness(mm)	ID (mm)	Stitch number of each circle	Slot width(mm)	Slot length (mm)	Length(mm)
2-3/8″	60.3	4.83	50.64	12~18	0.2~0.8	45~100	1000~12000
2-7/8″	73	5.51	61.98	20~24		45~100
3-1/2″	88.9	6.45	76	24~28		45~100
4″	101.6	6.65	88.29	24~30		45~100
4-1/2″	114.3	5.69	102.92	24~30		45~100
		6.35	101.6			45~100
		7.37	99.57			45~100
		8.56	97.18			45~100
5″	127	5.59	115.82	28~36	0.25~0.8	45~100
		6.43	114.15			45~100
		7.52	111.96			45~100
		9.19	108.61			45~100
5-1/2″	139.7	6.2	127.3	30~38		45~100
		6.99	125.73			45~100
		7.72	124.26			45~100
		9.17	121.36			45~100
		10.54	118.62			45~100
7″	177.8	6.91	163.98	36~50		45~100
		8.05	161.7			45~100
		9.19	159.41			45~100
		10.36	157.07			45~100

1. Our perforated pipe use J55/K55/N80 casing and tubings of API standard, with High overall strength, not so easy to deformation.

2. The edge of the slot is vertical, smooth, without burrs, and the slot is uniformity.

3. The perforated pipe is suitable for sandy well, which the diameter of the sand greater than 0.3mm.

4. The slot can be longitudinal and transverse, the section of the slot can be parallel and trapezoidal types, with a wide open area.

5. Slotted screen pipe has a big inner diameter.

API Spec 5CT – Specification 5CT/ISO 11960, Specification for Casing and Tubing, Eighth Edition, Petroleum and natural gas industries-Steel pipes for use as casing or tubing for wells

Standard	Grade	Chemical compositions（％）
API SPEC 5CT	J55	C	Si	Mn	P	S	Cr	Ni	Cu	Mo	V
	K55	0.34～0.39	0.20～0.35	1.25～1.50	≤0.020	≤0.015	≤0.15	≤0.20	≤0.20	/	/
	N80	0.34～0.38	0.20～0.35	1.45～1.70	≤0.020	≤0.015	≤0.15	/	/	/	0.11～0.16
	L80	0.15～0.22	≤1.00	0.25～1.00	≤0.020	≤0.010	12.0～14.0	≤0.20	≤0.20	/	/
	P110	0.26～0.395	0.17～0.37	0.40～0.70	≤0.020	≤0.010	0.80～1.10	≤0.20	≤0.20	0.15～0.25	≤0.08

Mechanical Properties

Grade	Type	Total elongation under load (%)	Yield strength (min)	Yield strength (max)	Tensile strength min Mpa	Hardness Max (HRC)	Hardness Max(HBW)
J55	-	0.5	379	552	517	-	-
K55	-	0.5	379	552	655	-	-
N80	1	0.5	552	758	689	-	-
N80	Q	0.5	552	758	689	-	-
L80	1	0.5	552	655	655	23	241
L80	9Cr	0.5	552	655	655	23	241
L80	13Cr	0.5	552	655	655	23	241
C90	-	0.5	621	724	689	25.4	255
C95	-	0.5	655	758	724	-	-
T95	-	0.5	655	758	724	25.4	255
P110	-	0.6	758	965	862	-	-
Q125	All	0.65	862	1034	931	-	-
